Mods

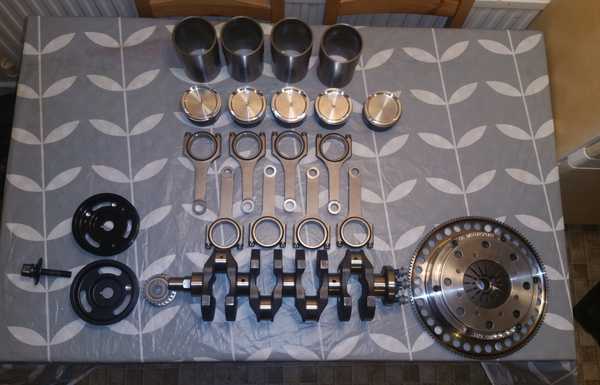

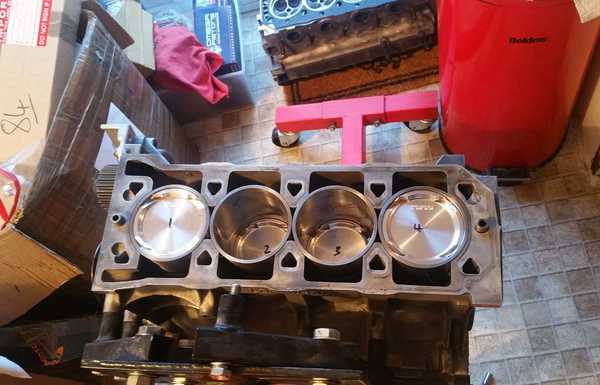

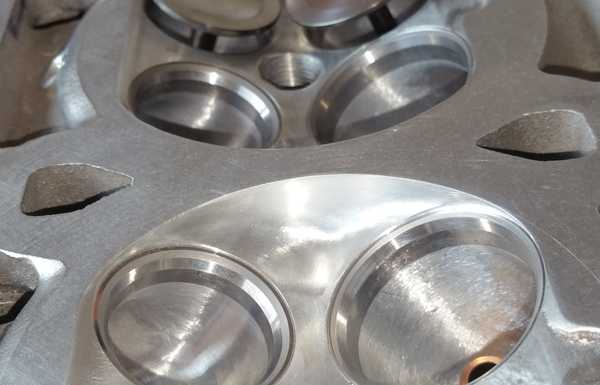

Built Rover K Series Engine with my own design pistons/cams/valves, most powerful one in the world\r
1800cc 700bhp+ 9100rpm\r
Holset twin scroll truck turbo with billet compressor wheel\r
Twin scroll manifold with a pair of 40mm turbosmart gates\r

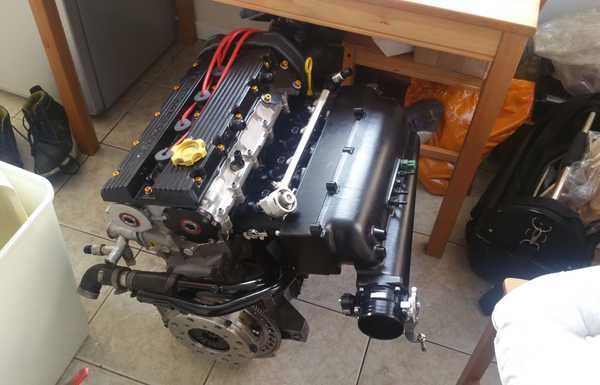

Combining aftermarket Ford Cosworth with individual throttle body castings\r
70mm Ford RS500 intercooler\r
Super short gear ratios with spool diff\r
108mm 28 spline axles in 300m material\r
Adaptronic ecu\r
Gaz coilovers with custom brackets\r
26" tall rear slicks\r
Motorsport elise body\r
6 point cage\r
Perspex window/windscreen\r
Hydraulic Handbrake\r
Tillet FIA seat XL as im tall/fat
1800cc 700bhp+ 9100rpm\r
Holset twin scroll truck turbo with billet compressor wheel\r
Twin scroll manifold with a pair of 40mm turbosmart gates\r
Combining aftermarket Ford Cosworth with individual throttle body castings\r
70mm Ford RS500 intercooler\r

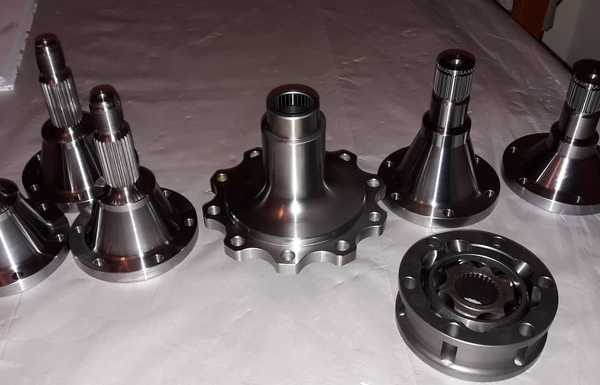

Super short gear ratios with spool diff\r

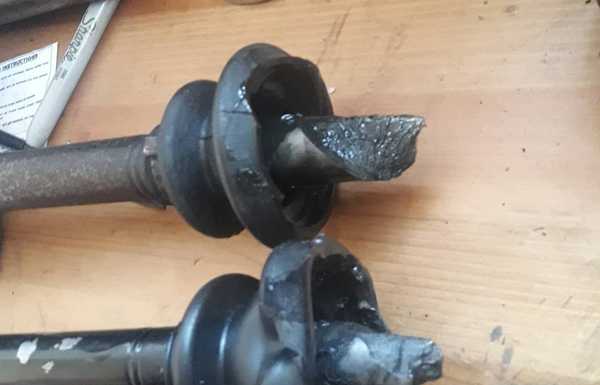

108mm 28 spline axles in 300m material\r
Adaptronic ecu\r
Gaz coilovers with custom brackets\r
26" tall rear slicks\r
Motorsport elise body\r
6 point cage\r
Perspex window/windscreen\r
Hydraulic Handbrake\r
Tillet FIA seat XL as im tall/fat
Build story
Since i couldnt afford to buy a lotus elise as prices have gone crazy I decided to build my own!\r
\r
The concept of the car is how light can I make the car but also limited to what i could do in a single garage with only hand tools.\r
\r
Every single part of the car has been built by myself, engine, gearbox, fabrication, wiring, plumbing on a pretty limited budget.\r
\r

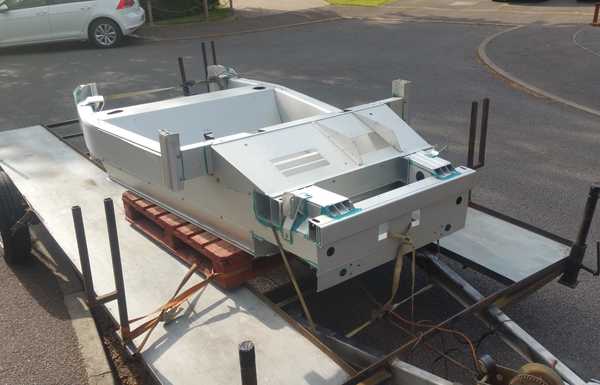

I built the car from a completely bare chassis and every single component was checked to see if I need it, then weighed it and see if there were other materials I could use to make it lighter(including all fasteners)\r
\r
The car is fully road legal in the UK and I drive it at weekend for fun(though with restrictions I can drive it to the shops)\r
\r
In the end with a full rollcage, large intercooler, oil accumulator it weighs 630kg so over 1000bhp/ton\r
\r

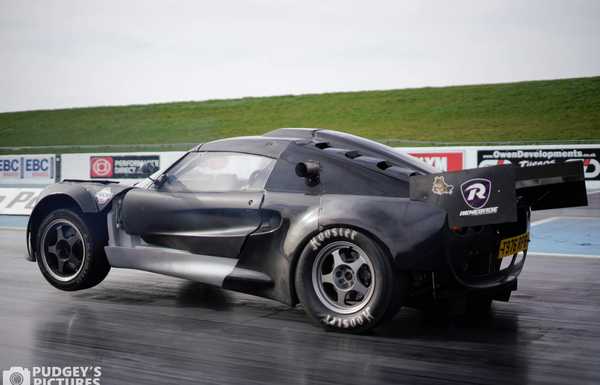

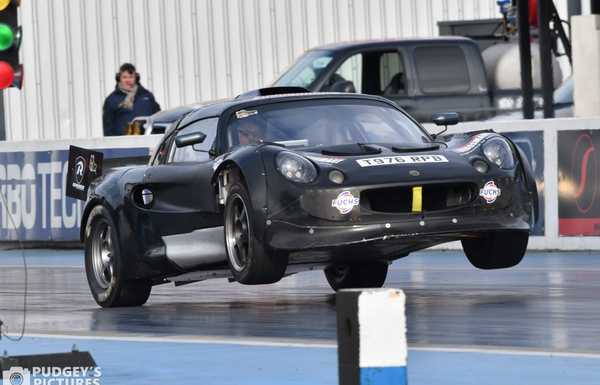

As far as im aware its the only lotus drag car out there and pretty much the only one that can do wheelies off the line!\r
\r
Its been a hard road up to yet, as there is no one doing anything similar to me so chassis setup takes from work and also because I build the most powerful of these engines I have to test components and concepts myself.\r
\r
The target of the car is to be the first Lotus into the 8s\r
\r
On the youtube link I made 6 short videos about the car, sorry about the quality, im no youtuber!
