Mods
Where to start!?
-rear subframe
-ridetech air ride suspension and control
-EFI Live with custom tunes done by yours truly
-1/2" fuel lines
-DJM 4x4 6 inch drop

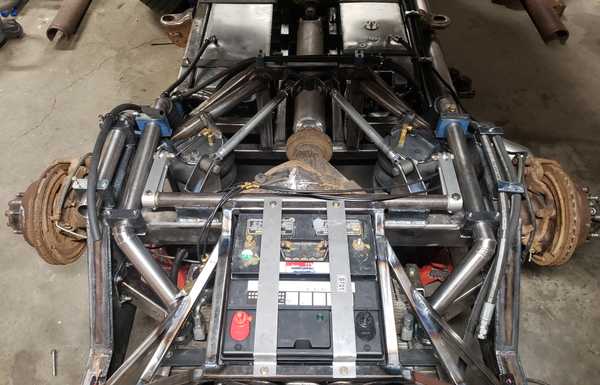

-triangulated four link
-rad relocate to the rear
-3 inch body drop to hide the frame
-Custom firewall
-3.5 inch stailness downpipe to 4 inch stainless
-Fass 165gph
-Wagler Comp valve covers, thermostat delete adapter
-PPE Remote Oil cooler kit
-PPE remote oil filter mount
-Mishimoto HD oil cooler, and dual pass fuel cooler.
-SoCal water pump delete plate
-Davies Craig 40GPM electric water pump and controller with Steward component 55GPM piggyback
-Electric engine oil prime pump
-AEM CD7 display, 22Ch, pressure and temp sensors for engine monitoring

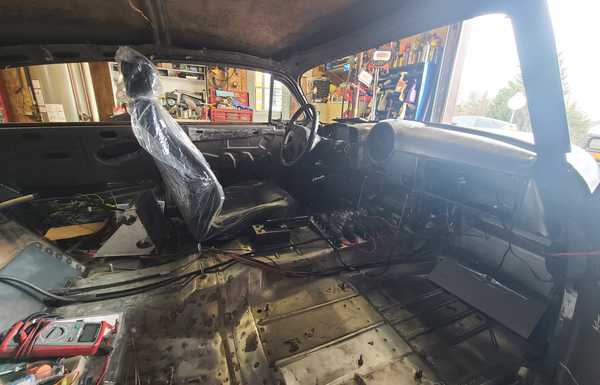

-Custom wiring(incomplete)
-Shortened aluminium driveshaft
-Polybushings all around
-2@40 Liter fuel cells
-Custom stainless intake piping
-Banks Ram Air filter
-Custom coolant expansion tank, catch can and power steering reservoir
-Custom alternator brackets for relocation
-Gm type 2 High flow powersteering pump
-Custom hydroboost brake reservoir
-new body panels
-20" Mayhem Monstir dually rims
-rear subframe
-ridetech air ride suspension and control
-EFI Live with custom tunes done by yours truly
-1/2" fuel lines
-DJM 4x4 6 inch drop
-triangulated four link
-rad relocate to the rear
-3 inch body drop to hide the frame
-Custom firewall
-3.5 inch stailness downpipe to 4 inch stainless
-Fass 165gph
-Wagler Comp valve covers, thermostat delete adapter
-PPE Remote Oil cooler kit
-PPE remote oil filter mount
-Mishimoto HD oil cooler, and dual pass fuel cooler.
-SoCal water pump delete plate
-Davies Craig 40GPM electric water pump and controller with Steward component 55GPM piggyback
-Electric engine oil prime pump
-AEM CD7 display, 22Ch, pressure and temp sensors for engine monitoring
-Custom wiring(incomplete)
-Shortened aluminium driveshaft
-Polybushings all around
-2@40 Liter fuel cells
-Custom stainless intake piping
-Banks Ram Air filter
-Custom coolant expansion tank, catch can and power steering reservoir
-Custom alternator brackets for relocation
-Gm type 2 High flow powersteering pump
-Custom hydroboost brake reservoir
-new body panels
-20" Mayhem Monstir dually rims
Build story

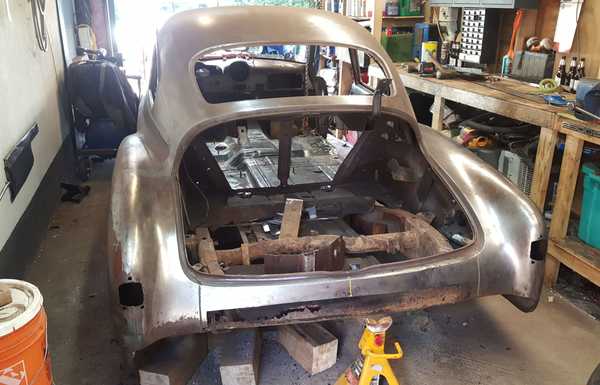

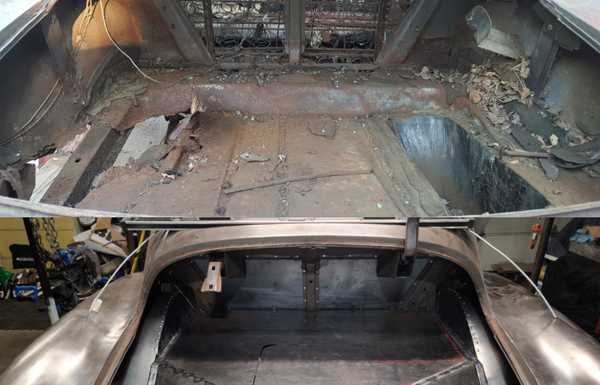

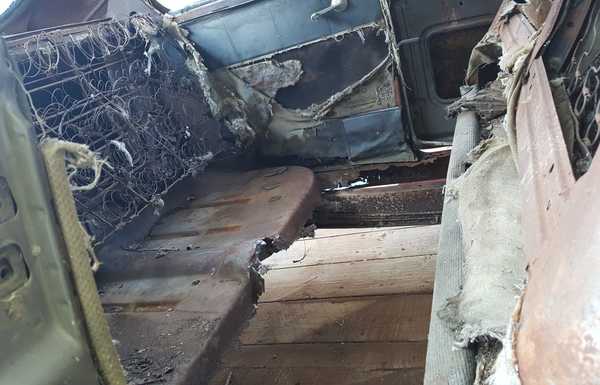

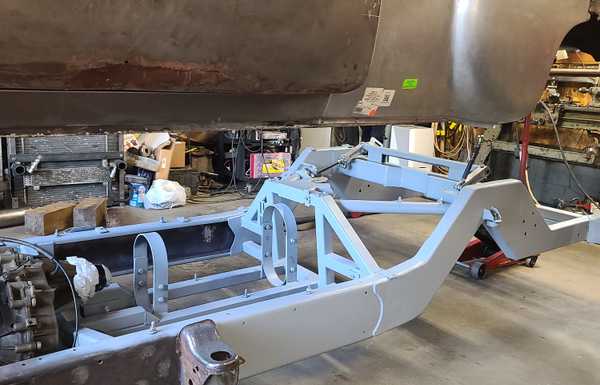

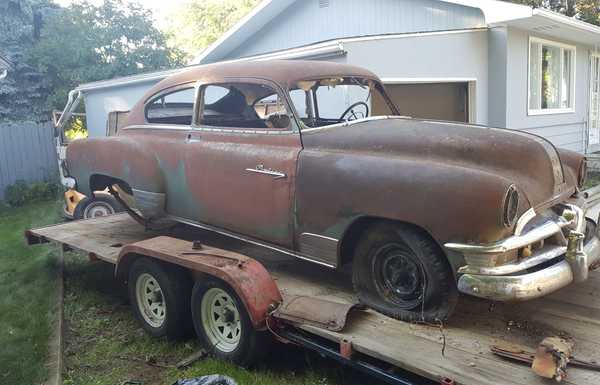

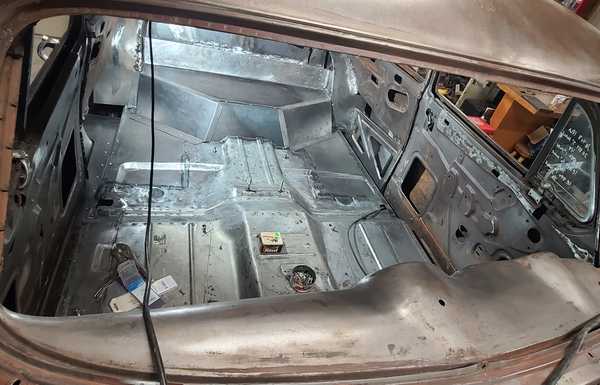

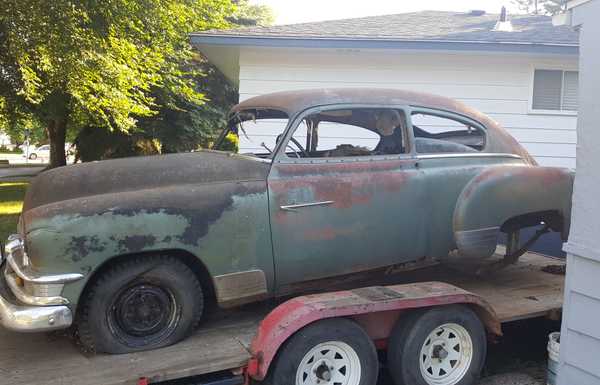

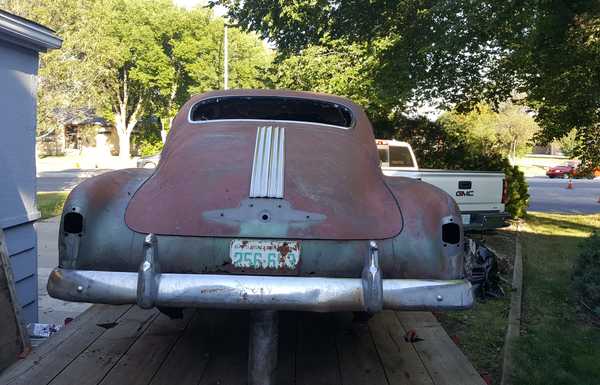

Being a HD tech, specializing in diesel engines, I always wanted to have a nice classic with a diesel. One day I came across this 51 on kijiji, the owner just wanted to get rid of it or was sending it to scrap, seeing the condition of the shell, I couldn#039;t let that happen. Once I started stripping it though, the rot was way worst than I initially expected but kept working at it slowly. I initially wanted to put in a 6BT , but while looking for one, I stumbled across a wrecked 2006 Duramax 4x4 on a salvage site and got it for a dime. With the floor rotted out of the 51, I decided to cut out the floor of the Duramax, take the cab and box off, cut the frame, then line up and drop the shell of the 51 onto the floor, dropping it 3 inches lower to hide the frame rails. Welded up the floor to the body and my dream car was finally starting to the shape. Flash forward 2 years and she should be ready for a test drive this spring. All designing, fabricating, welding, wiring, tuning done by myself. More pics and videos on my instagram BustedCanuk.
