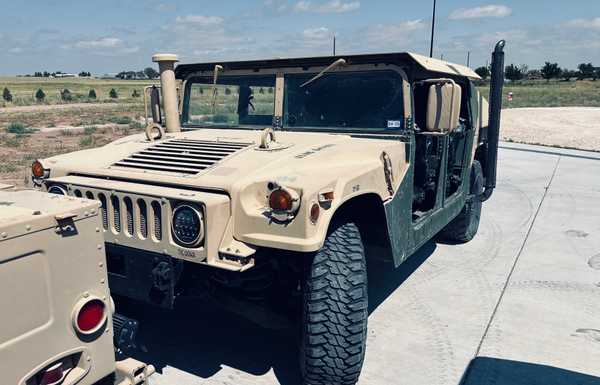

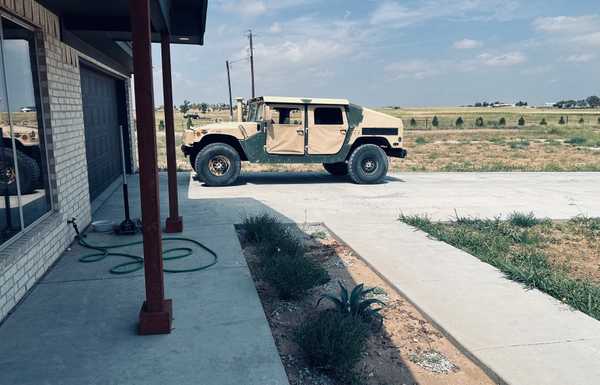

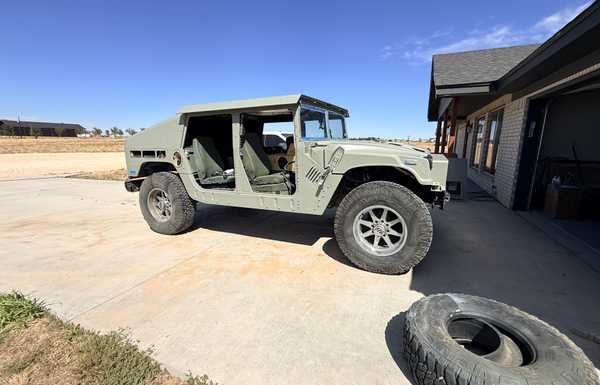

M1165a1 as I received it.
Marines had cut main dash wiring and main light switch wiring. Had to re-pin and label all.

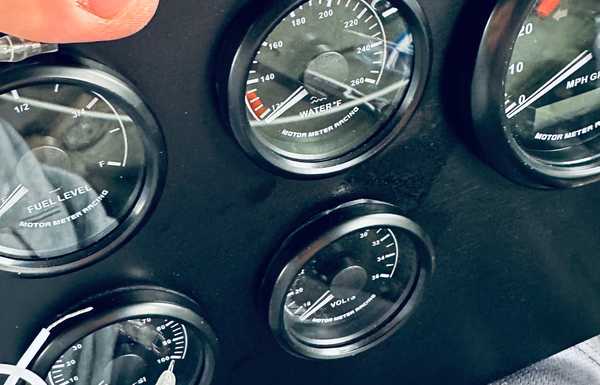

Testing new gauges

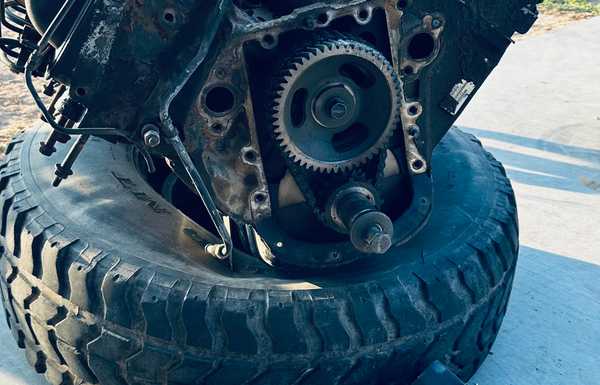

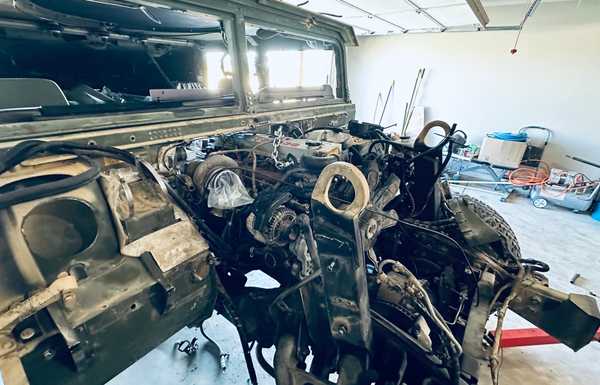

6.5td took a dump. Beginning of tear down

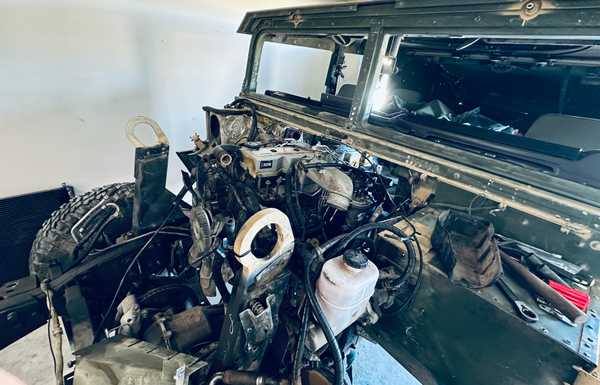

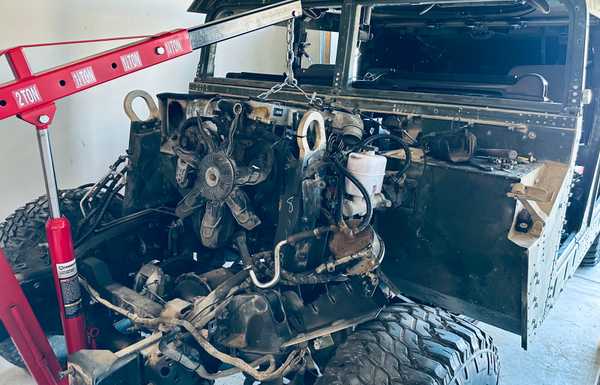

Engine about ready to come out

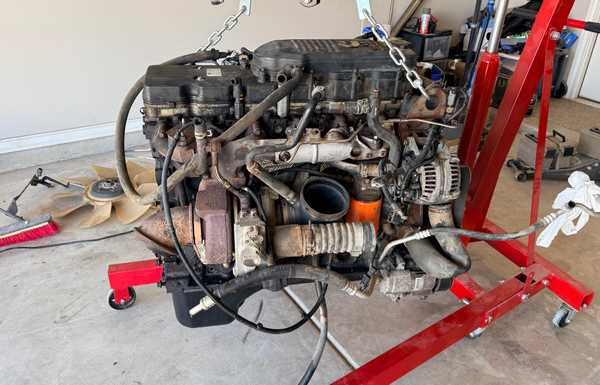

6.5 out
Donor truck arrived

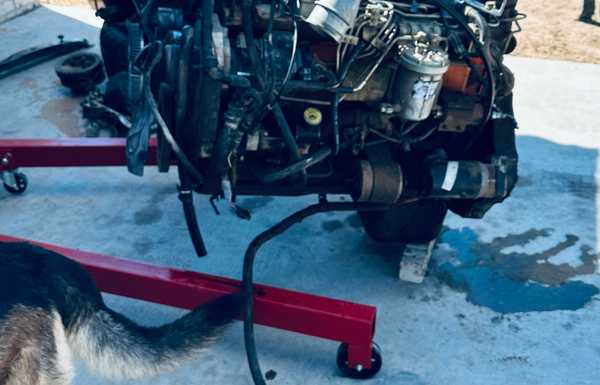

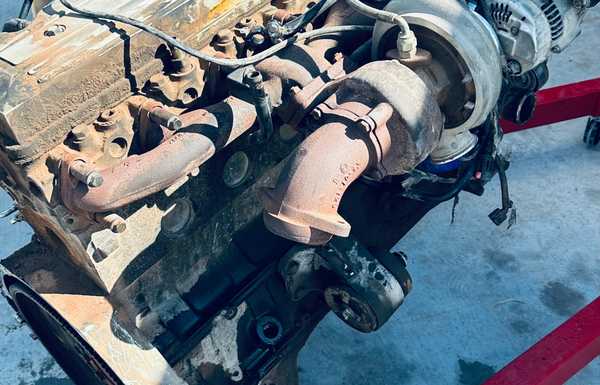

24v removed from donor
Getting ready to be cleaned.
2” body lift installed

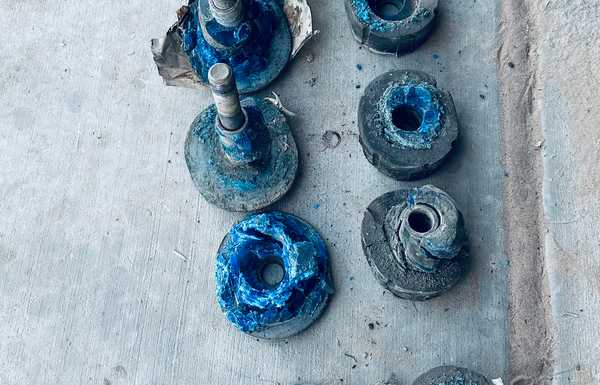

Old body mount bushings
2” lift installed

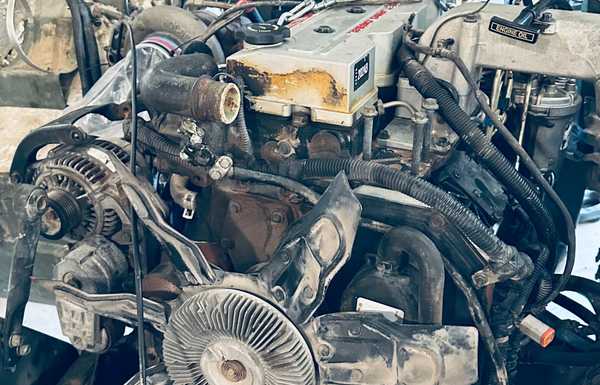

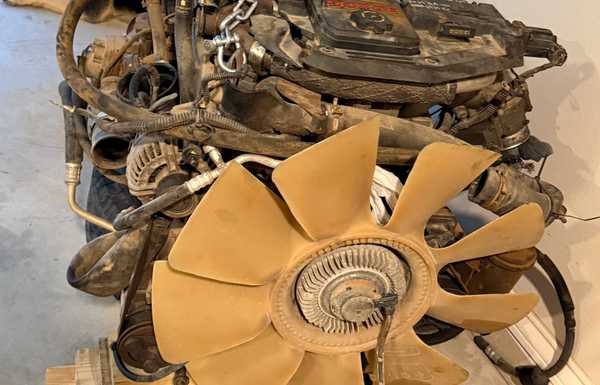

Placing Cummins to find best placement
Sitting strapped up in humvee. Still able to place it where I need or shift as needed to make new mounts.

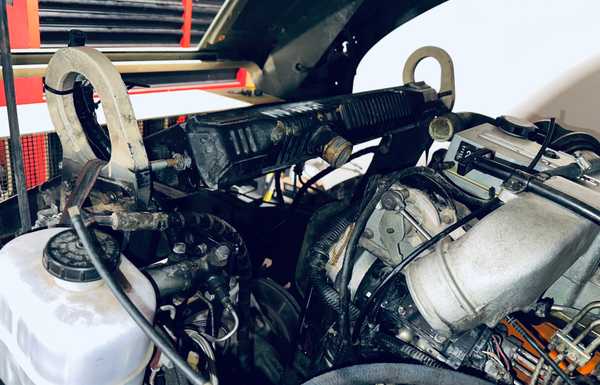

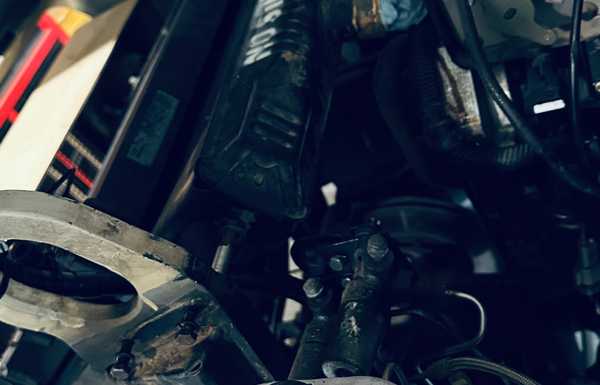

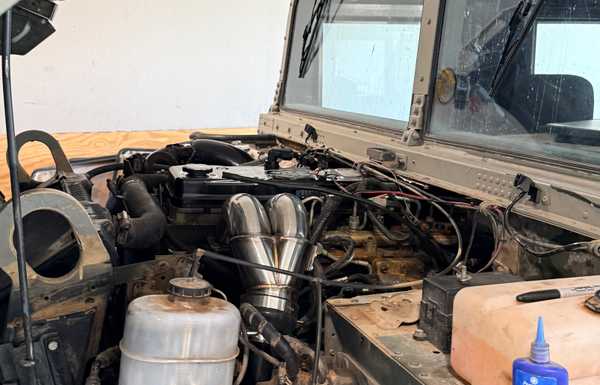

Sitting on its new mounts

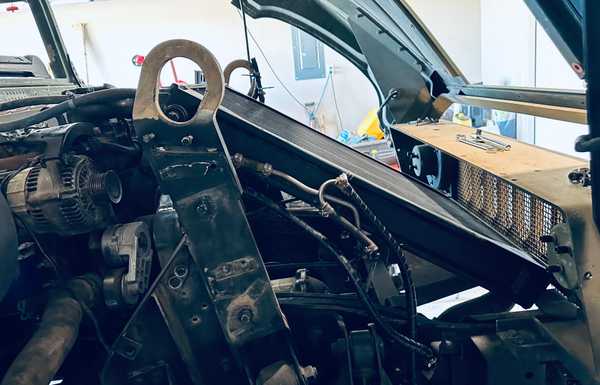

Extending rad mounts
Radiator mounted

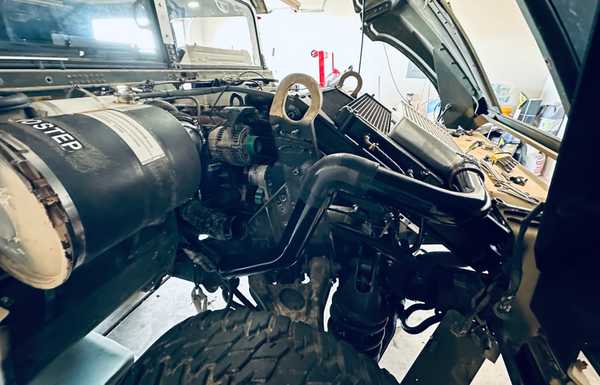

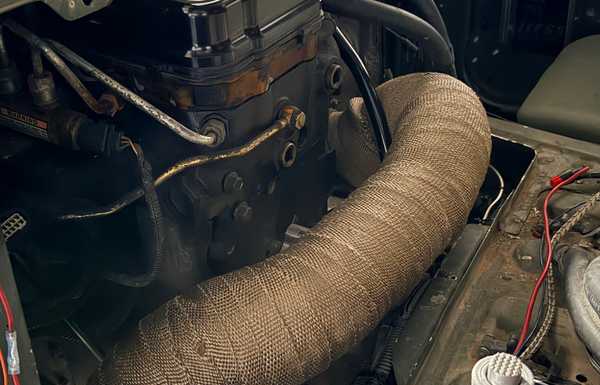

Starting down pipe fab

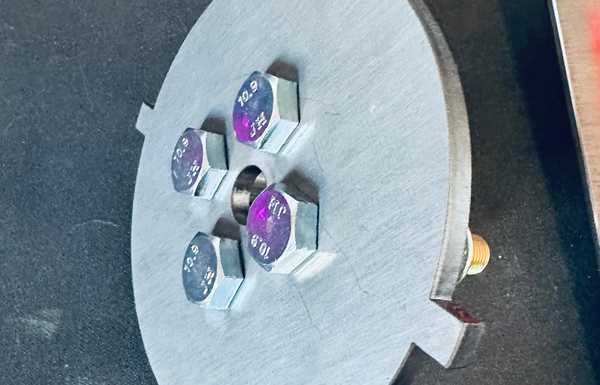

4 tone ring gear setup for HMMWV 4l80e trans controller.

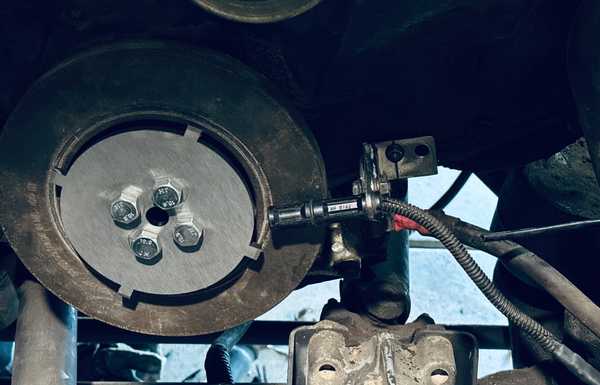

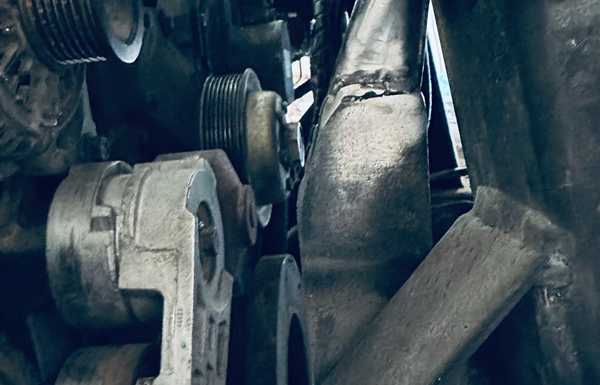

Tone ring on top of balancer
Looking for possible engine rpm sensor mount locations

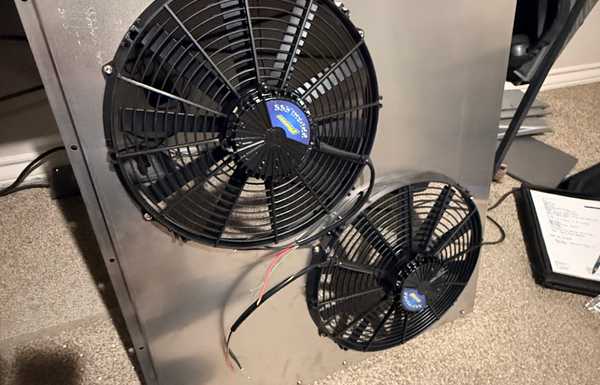

Crown Vic electric fan mounted to radiator and installed.

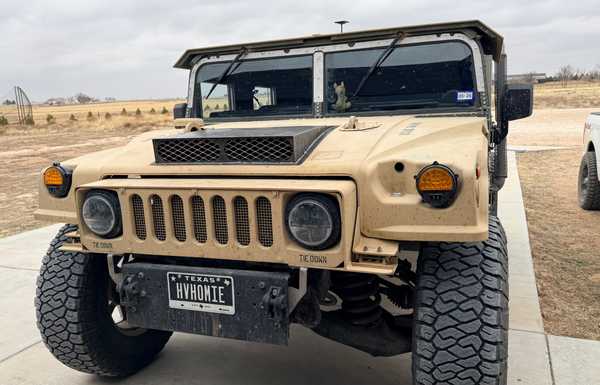

Prepping for intercooler setup

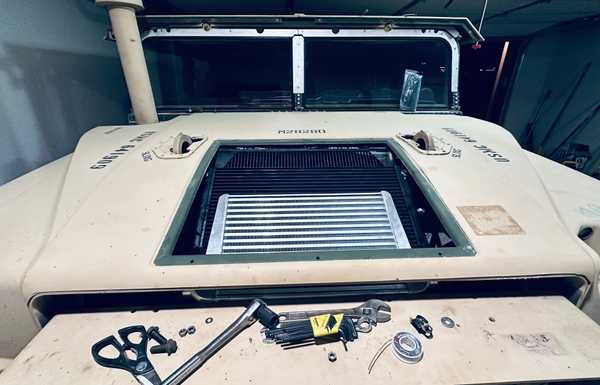

Test fitting
Test fitting

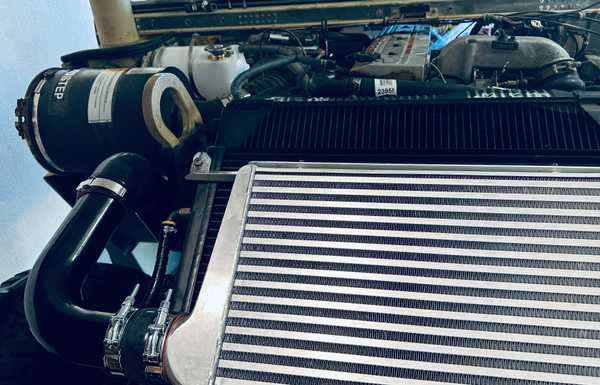

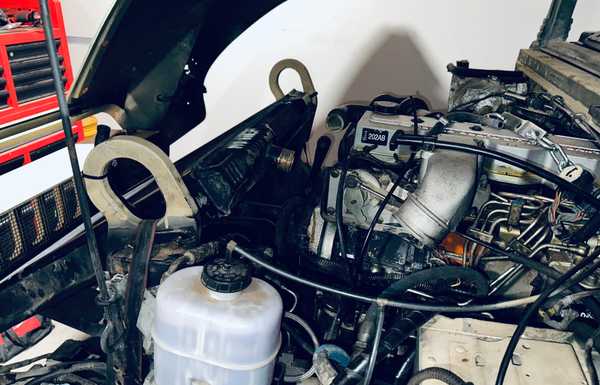

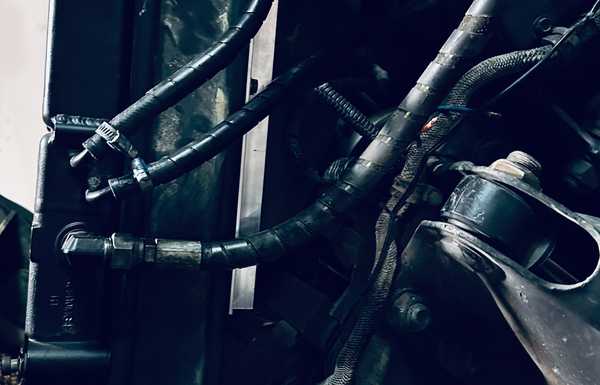

Passenger side intercooler plumbed
Driver side intercooler plumbed

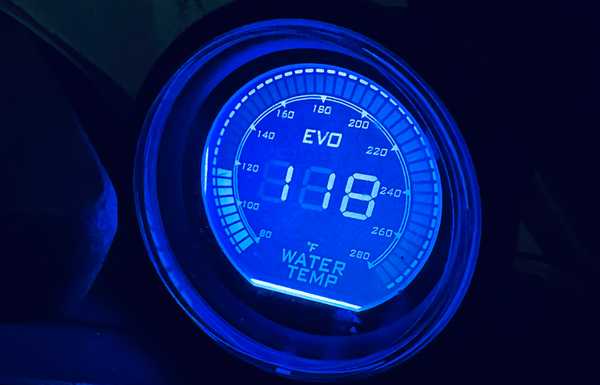

Testing of coolant gauge

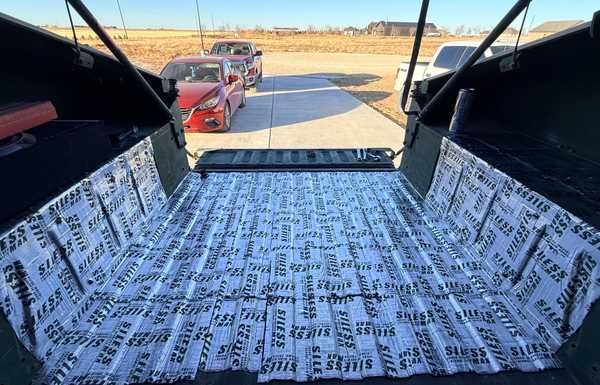

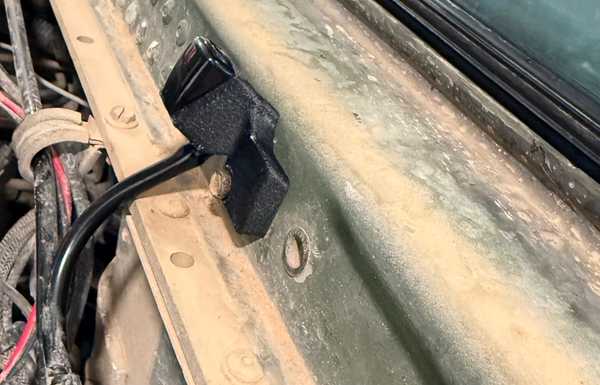

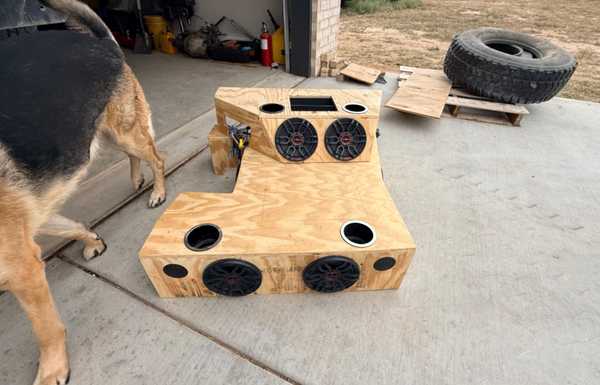

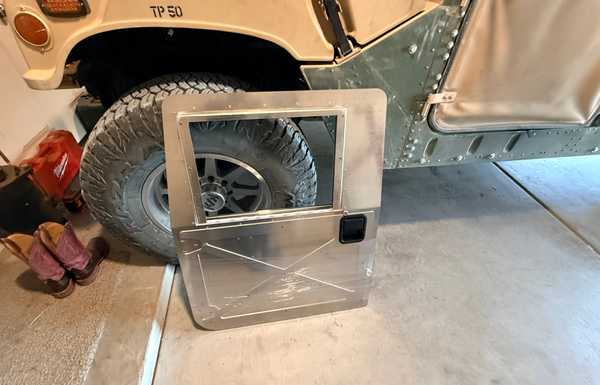

Build story

Started off as a USMC M1165a1 with the 6.5td and 4l80e transmission.

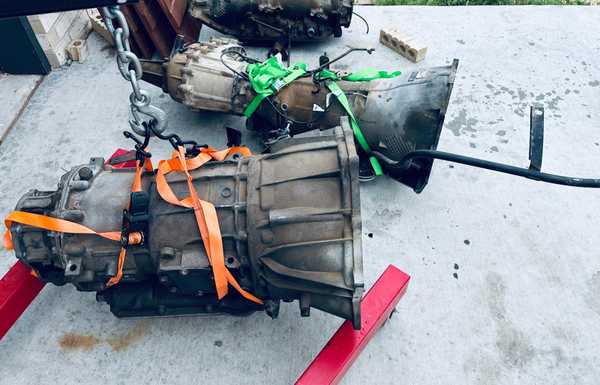

Currently in process of swapping in cummins 24v mated to the 4l80. Plans for the 6spd Allison 1000 later down the line.

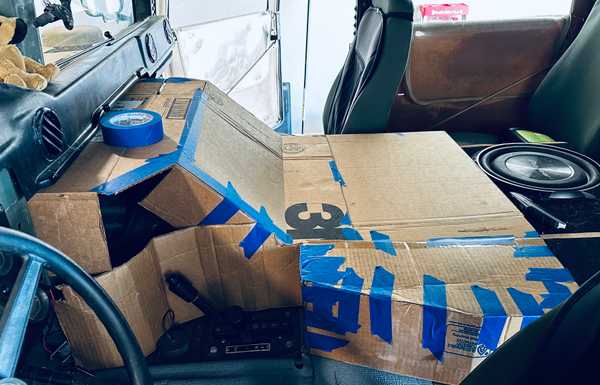

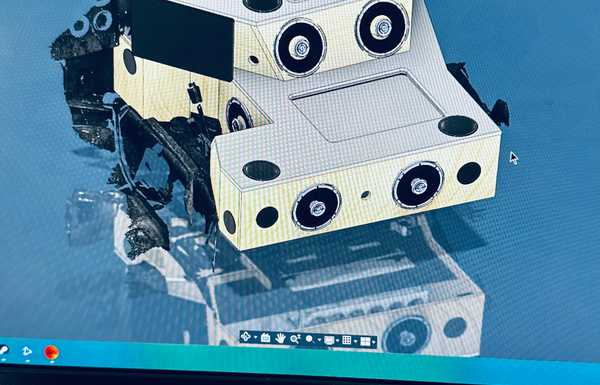

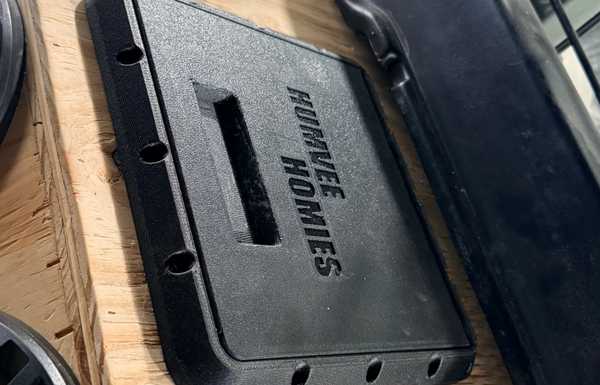

The plan is to eventually turn this into something like a custom H1

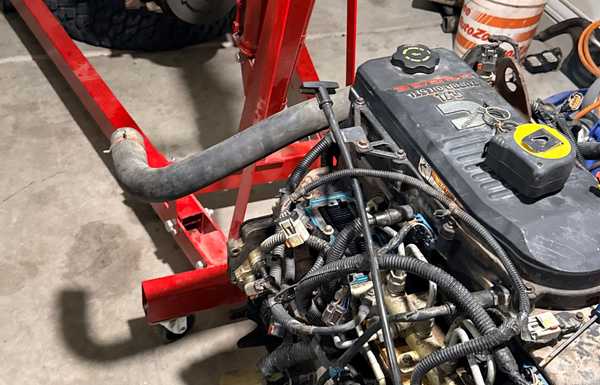

Engine

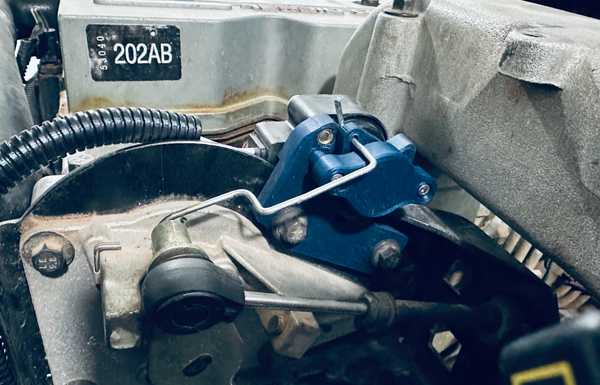

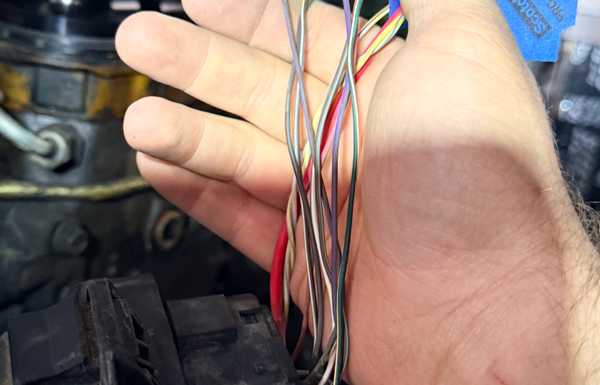

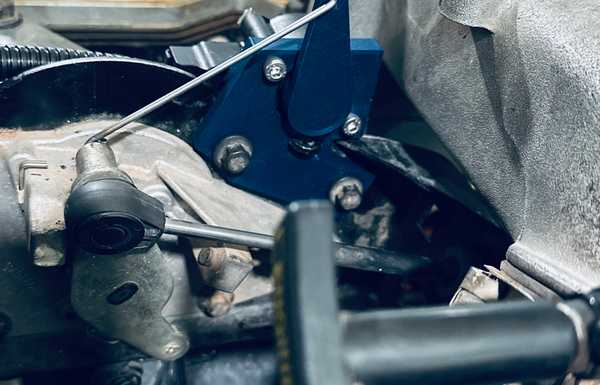

Cummins 24v
