Bronco Build

Ford

Bronco

1992

0

Signup or Login to like and comment

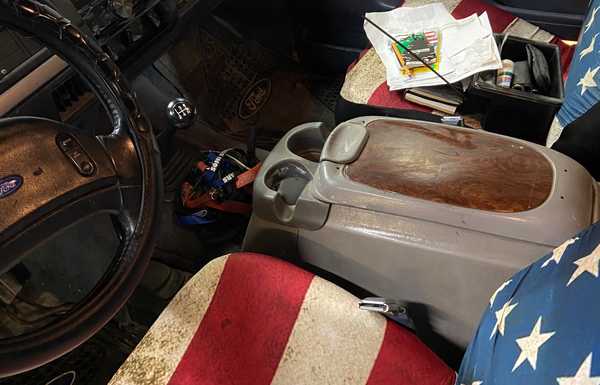

Testing to see why transmission rattles

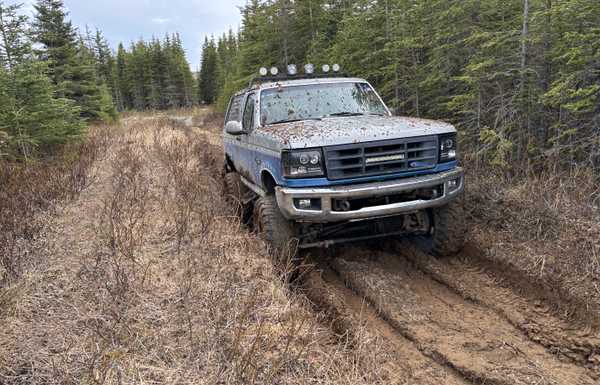

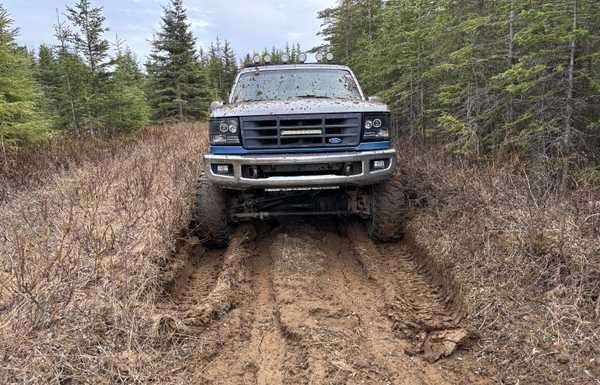

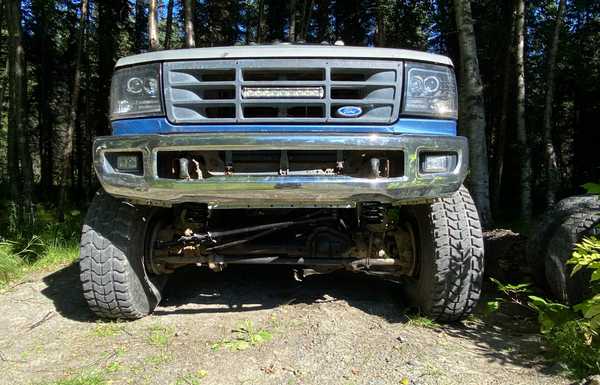

Front view

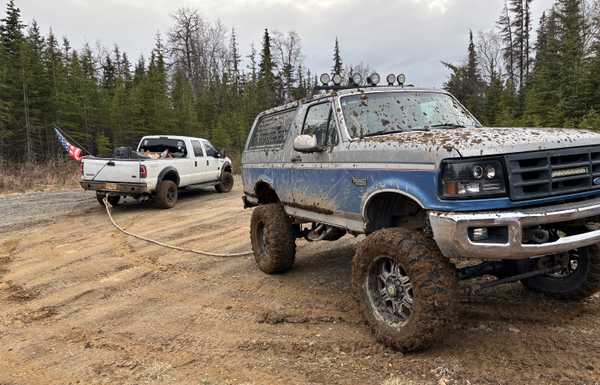

Lost 3rd trying to get unstuck and made the executive decision to grab the reliable daily 6.0

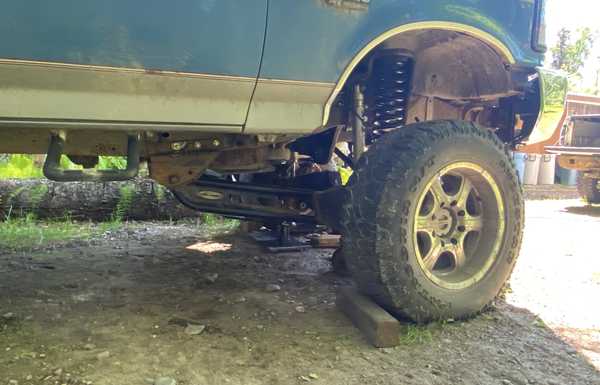

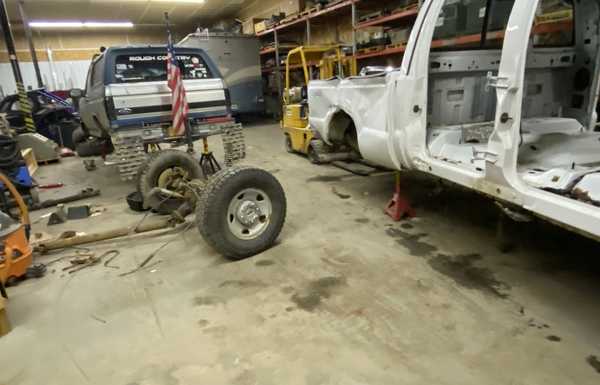

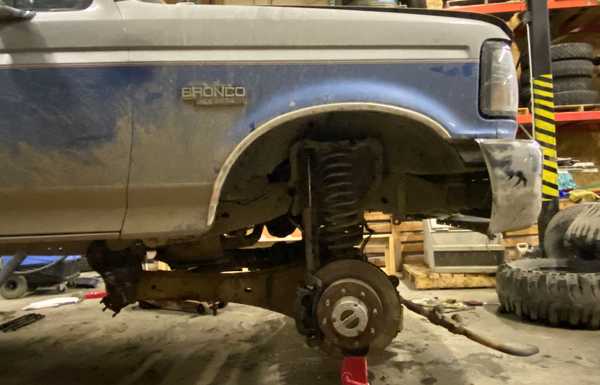

Swapping axles

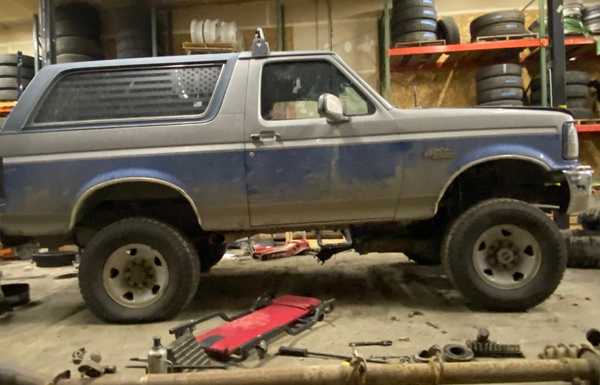

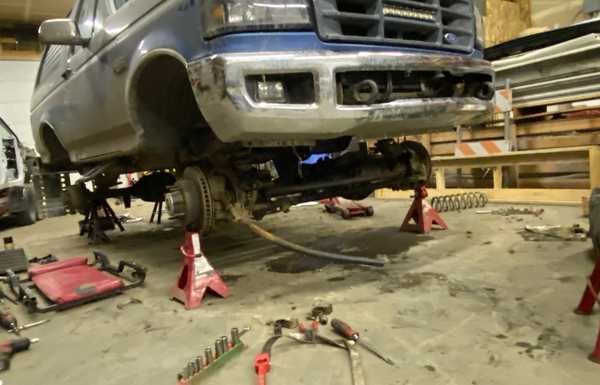

08 SD axles under it
Originally used stock coil buckets but switched to the SD ones
Thinking they towed the rolled 08 by the drag link

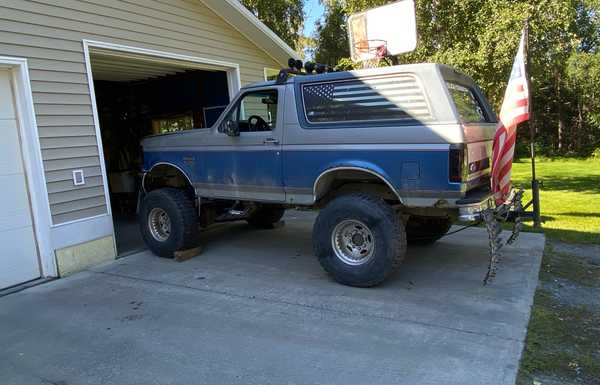

On its own weight
Second time the 8.8 broke

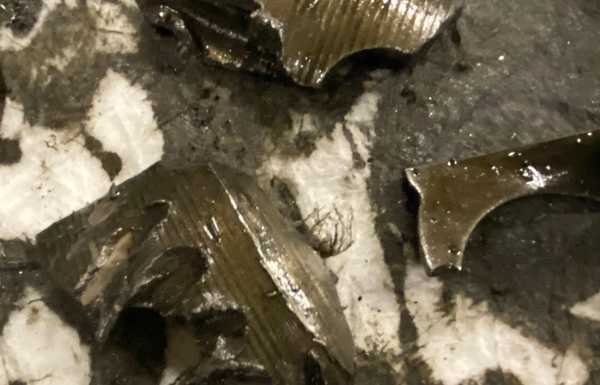

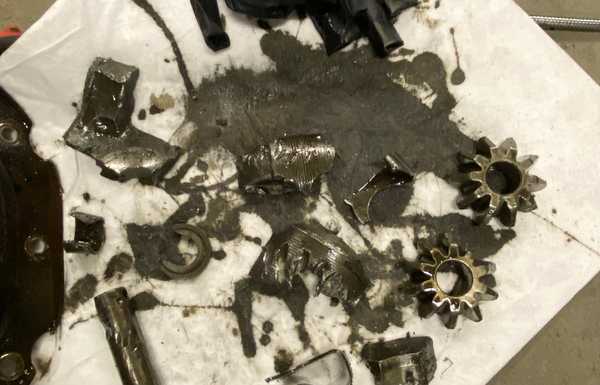

Carnage
More carnage

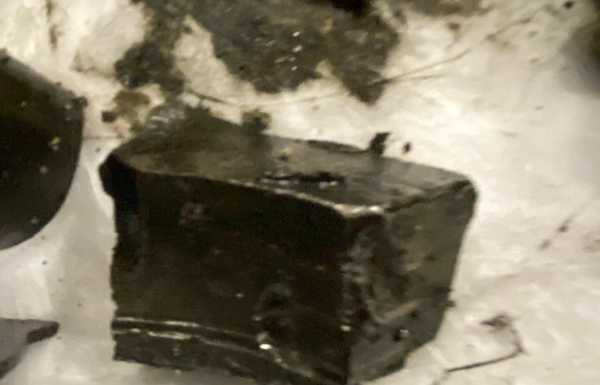

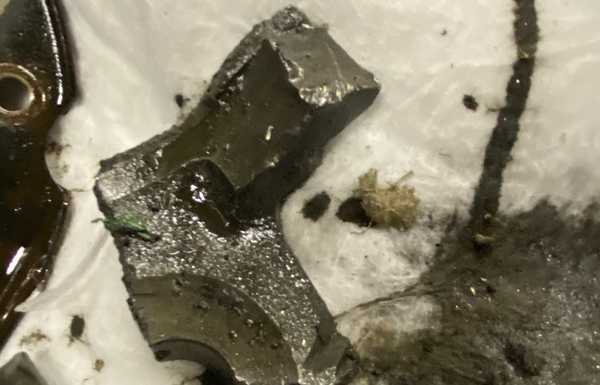

Broken stuff

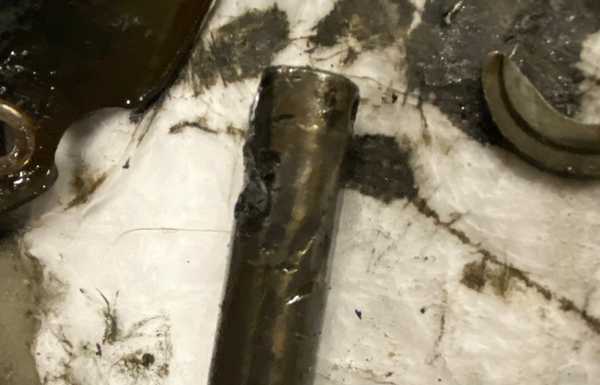

Broken

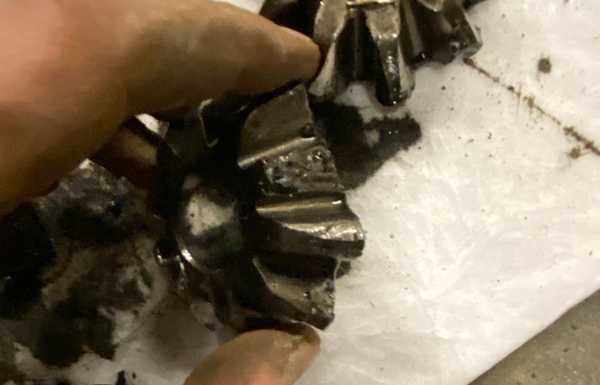

Yep that spider tooth is gone
All the carnage

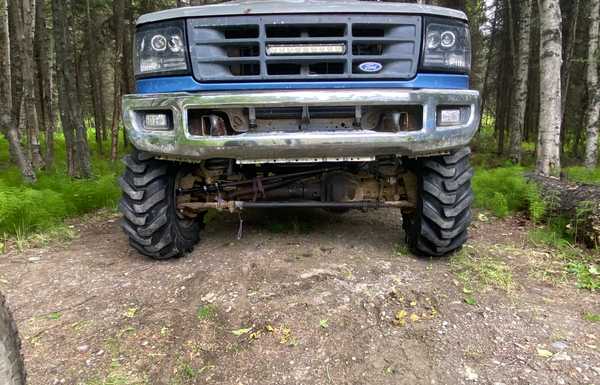

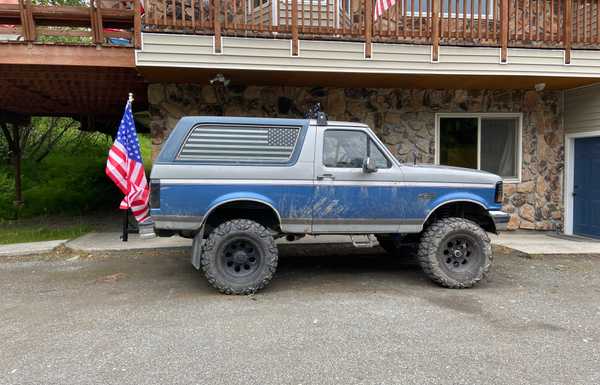

Solid axle and Kubota tires
OG 6” RC lift and 35” Mud Grapplers
Stock and 16 year old me
6” ProComp lift kit from dodge

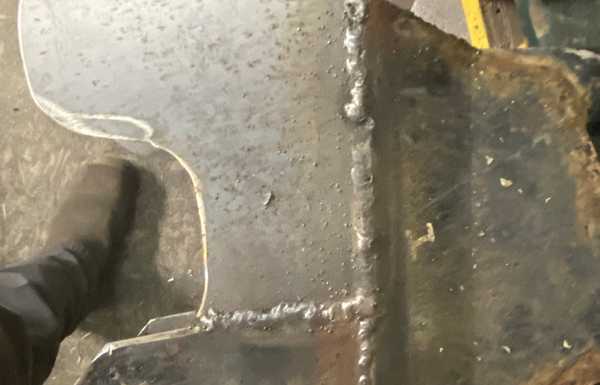

Modifications made to said lift kit
On Welds and military tires

Mods

Dana 60 solid front axle
Sterling 10.5 rear axle
6” ProComp lift from a ‘13 dodge (minor modification required)
Amazon lights galore
Dual 10” magnum subs with Skar audio mono amp
Double din touchscreen radio
Custom side exit exhaust
Bunch of stickers

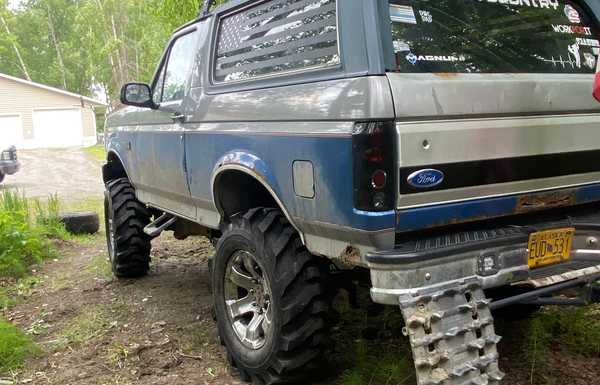

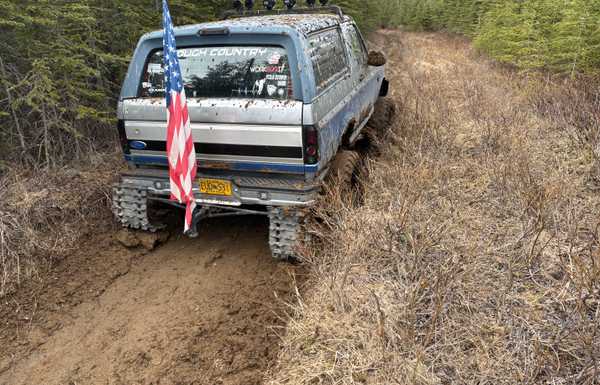

Custom rock tamer mud flaps using Polaris track (about the only thing a Polaris is good for)

Build story

Got this 92 Bronco bone stock when I was 16. Now 22, it’s had a couple different renditions and improvements, from the basic 6” rough country TTB lift and 35s, to lights and bumpers and exhaust and now a solid axle swap from a 08 F350. Basic little things here and there that the average truck kid does, like lights and exhaust. Front bumper from a ‘17 F350 with custom mounts which required cutting off frame bumper mounts and reselling on the outside of the frame (also to make room for the winch I have to put in). Did a lot of wheeling in it and after the second time I busted up the stock 8.8 i decided it was time to go beefier. Knew I wanted a heated up 7.3 PSD and ZF6 in it one day so the only option was a 05+ super duty swap. Got a good deal on a rolled 08 and threw it together in the back bay of the shop I was working at over the weekend with a little help from a coworker moving and lining up axles. The stock 5.0 and M5OD don’t like the 3.73 gears (hell they really didn’t like the stock 4.10s either) which is probably why the transmission rattles really bad without the clutch in and I don’t have 3rd gear anymore. So if anyone around Kenai AK sees this and has a 7.3 (preferably 94-97 but I can’t be picky) with a 5 or 6 speed or really has any manual Powerstroke for cheaper let me know through Instagram DMs. Yes even a 6.4 because that would actually be pretty cool.
