Built to Haul: 24 Valves, 13 Gears, One Legend

A childhood F-350, reborn with a 24-valve Cummins and a big-rig 13-speed to match.

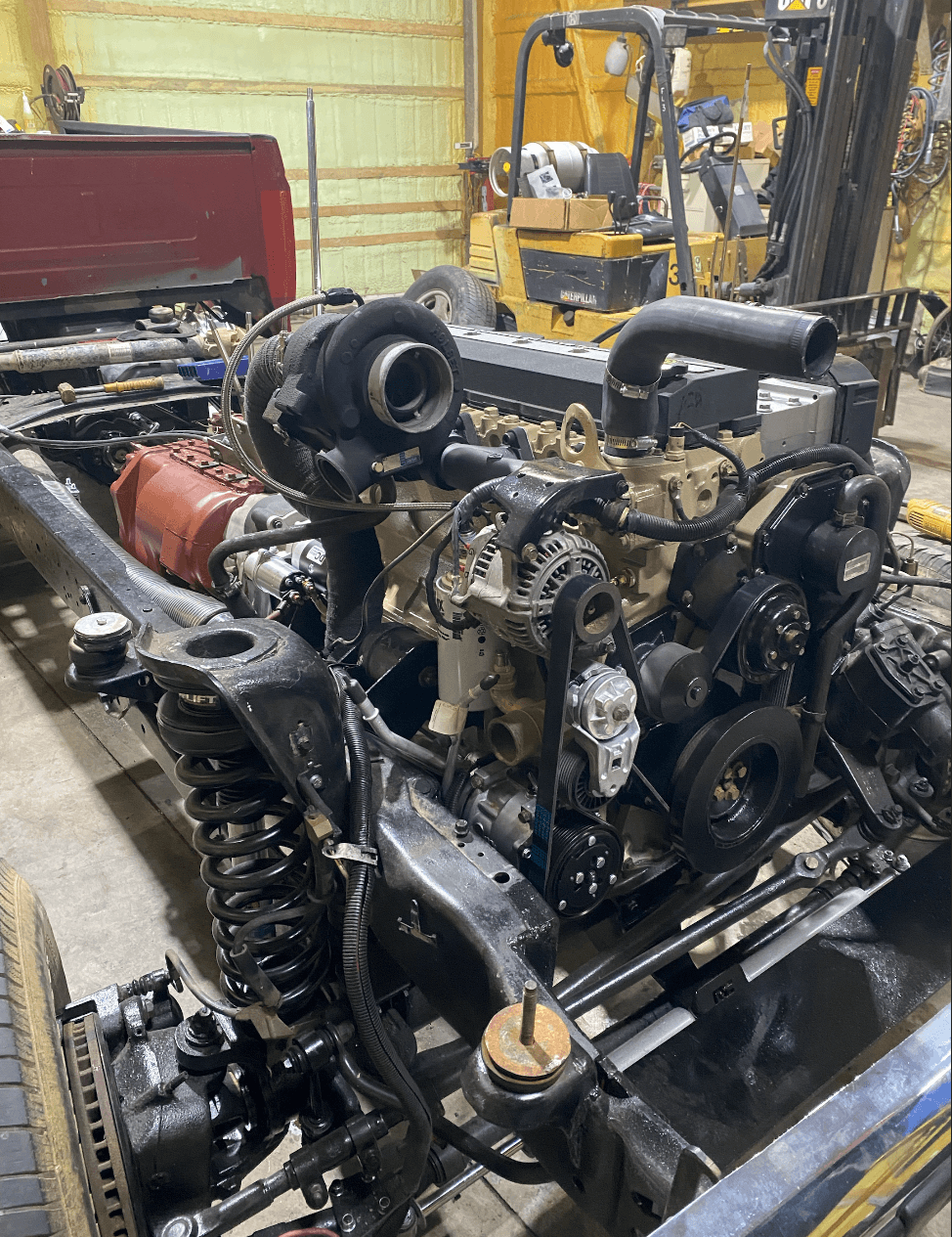

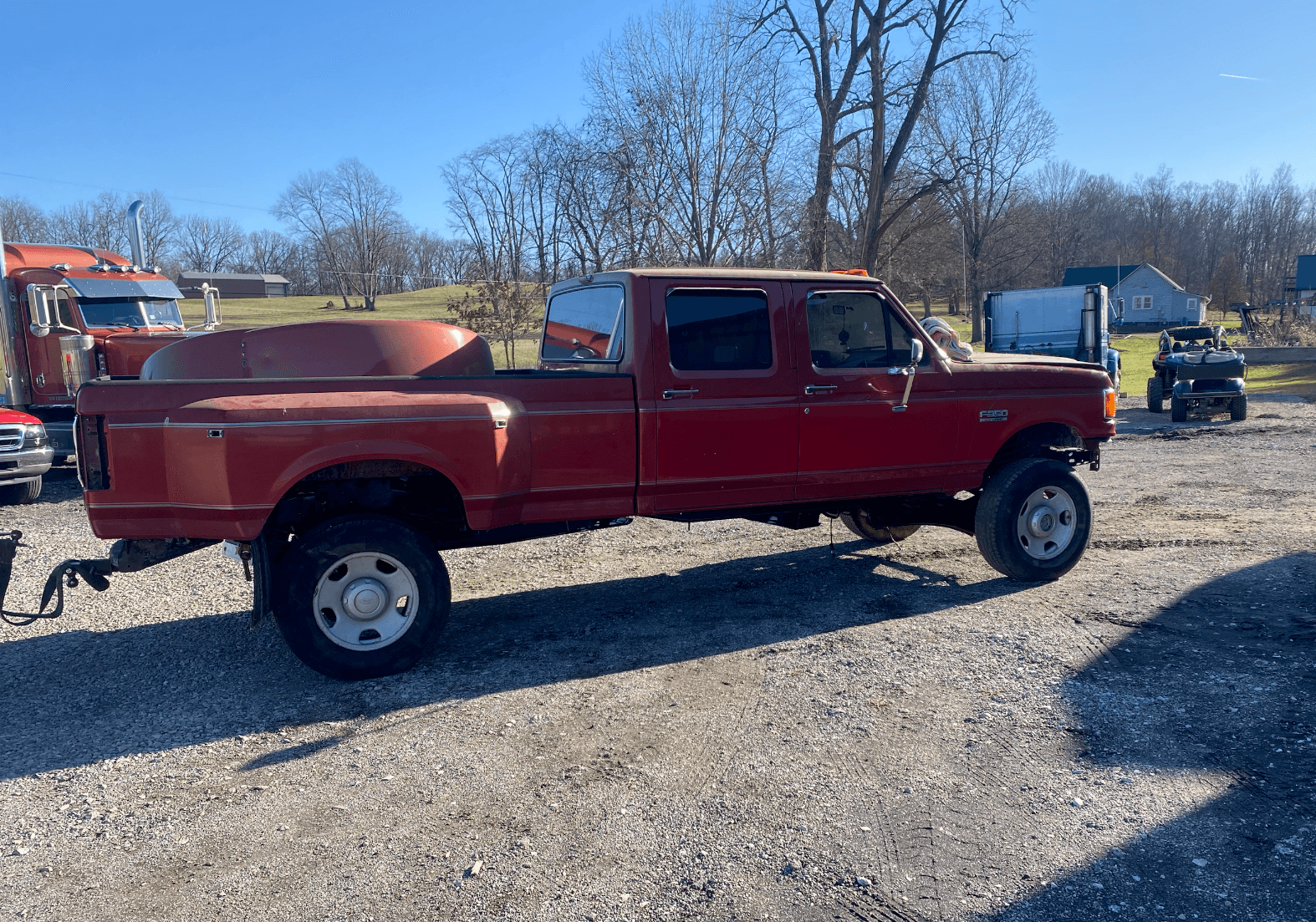

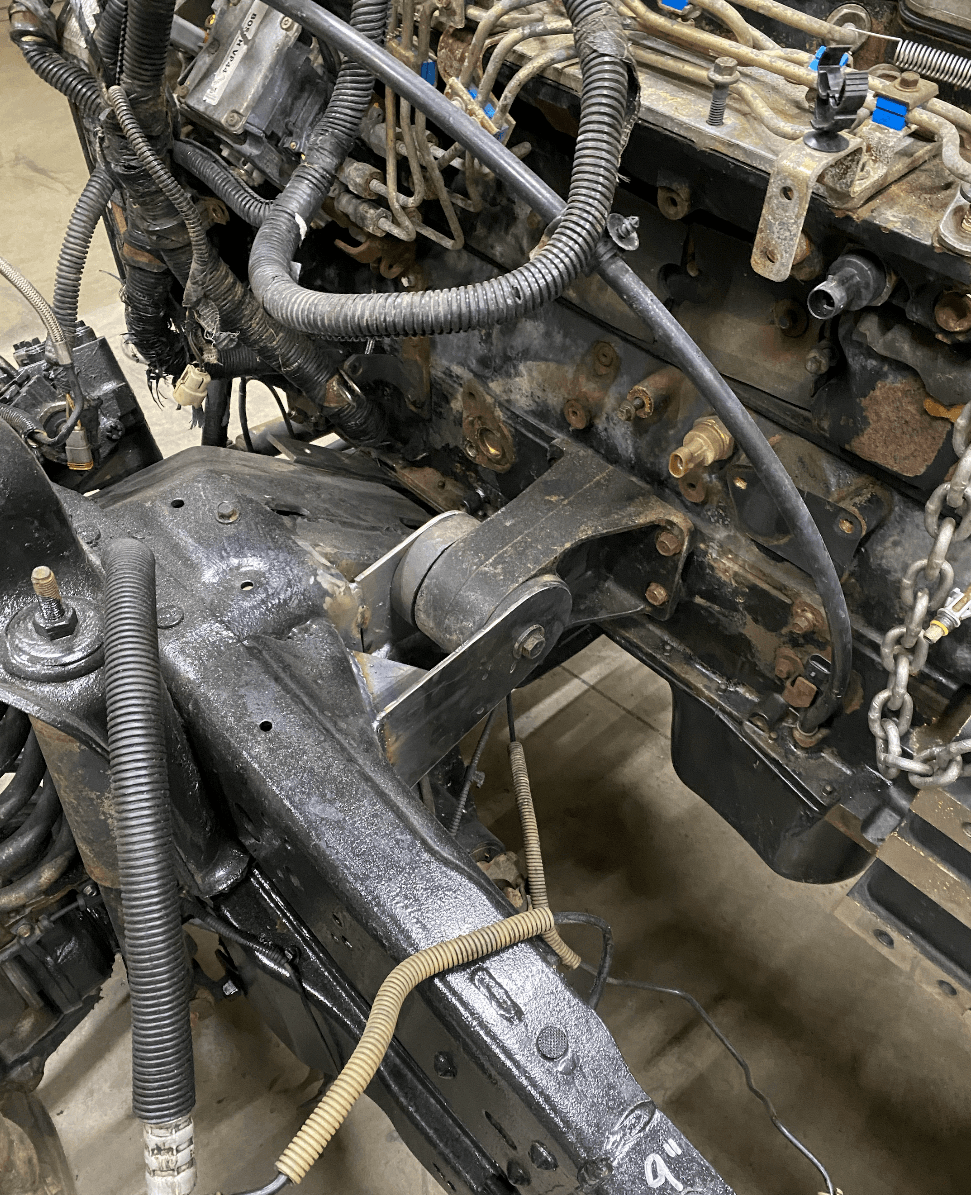

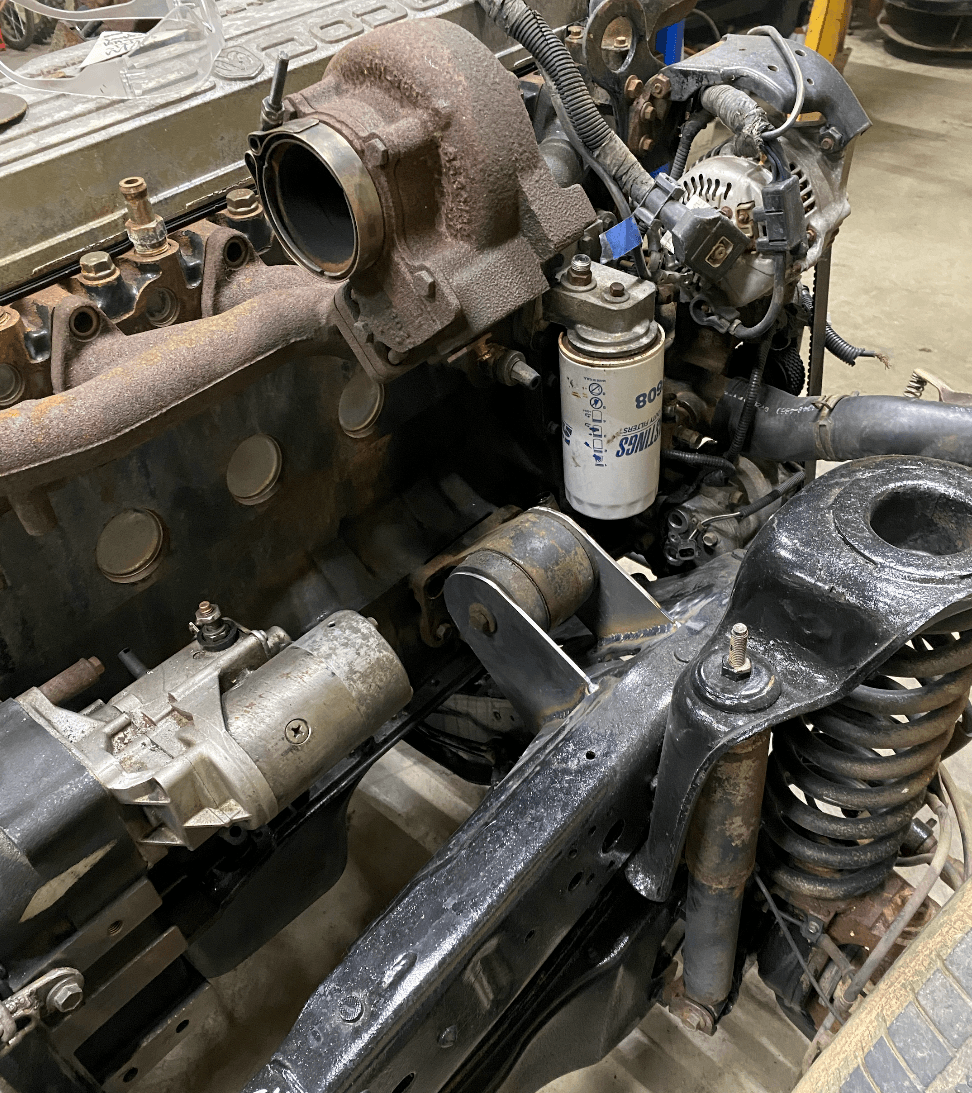

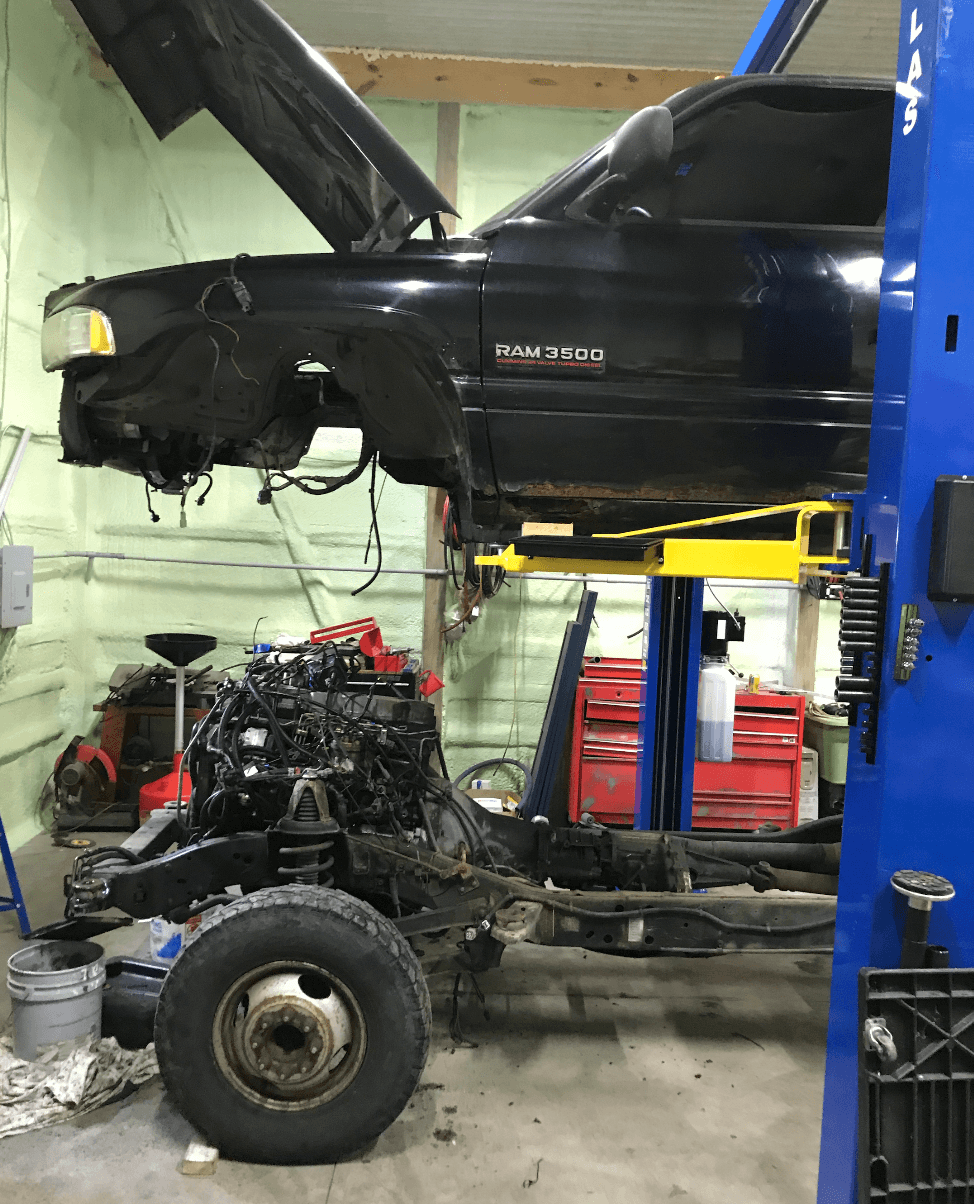

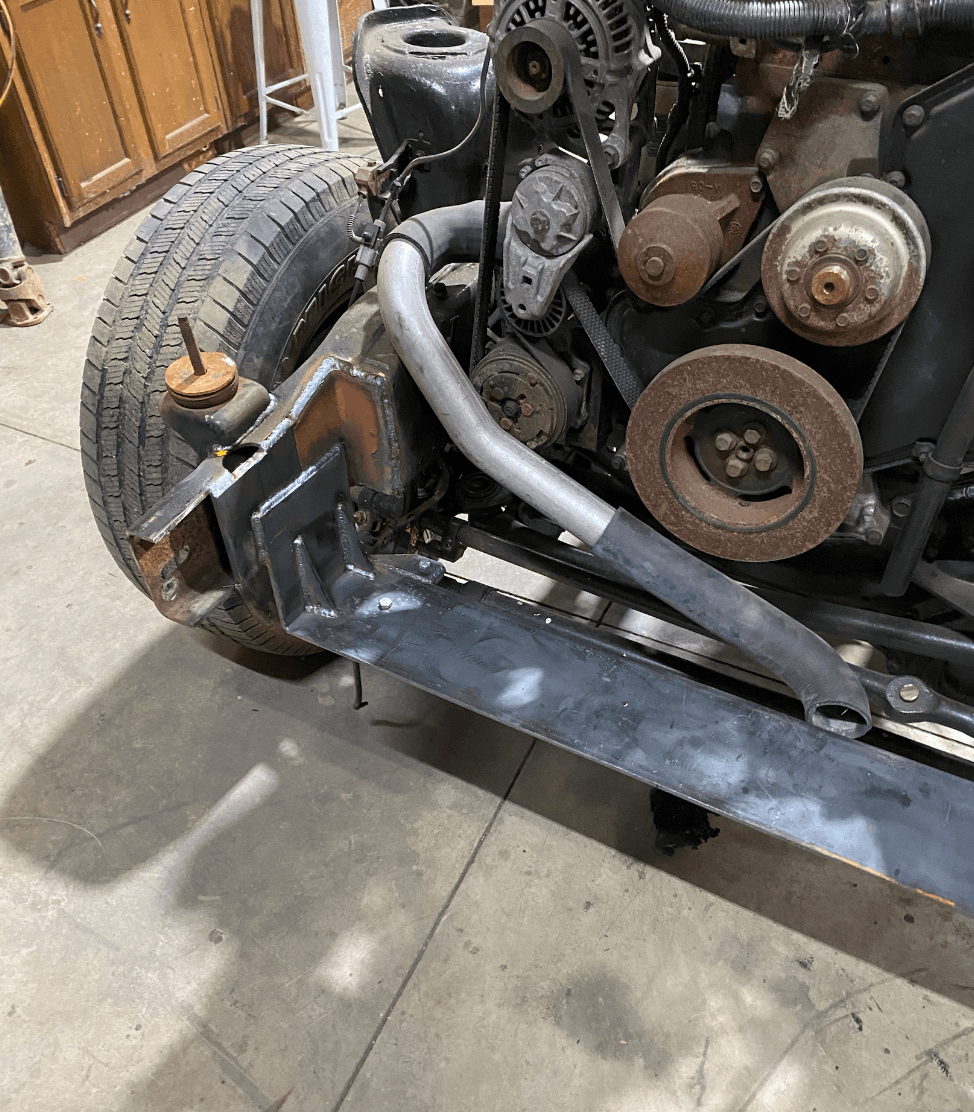

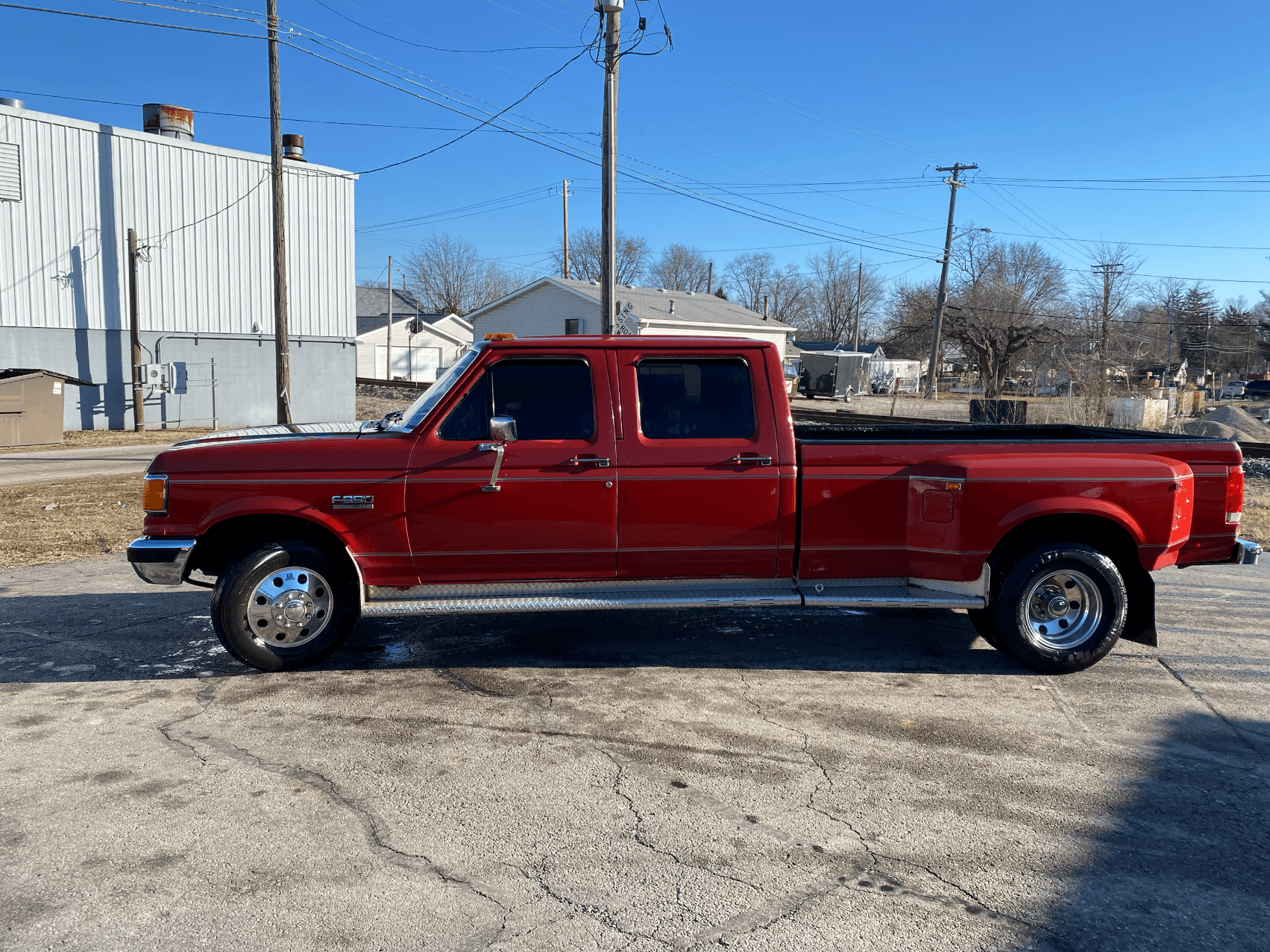

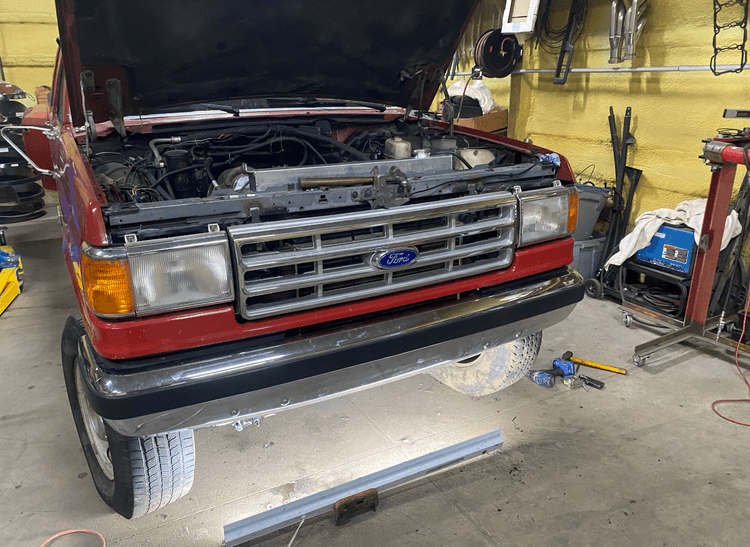

When Troy had the opportunity to buy back a 1987 Ford F-350 that had been part of his childhood, he knew he had to bring it back to life—but fate added its own twist. After blowing up the original 6.9 IDI engine, Troy saw the perfect opportunity to upgrade. He set his sights on a 24-valve Cummins for its unmatched power and reliability. After sourcing a donor truck, he pulled the engine and began the detailed process of integrating the Cummins into the classic F-350 frame, giving the truck a second life with a serious boost. (3:58-4:57).

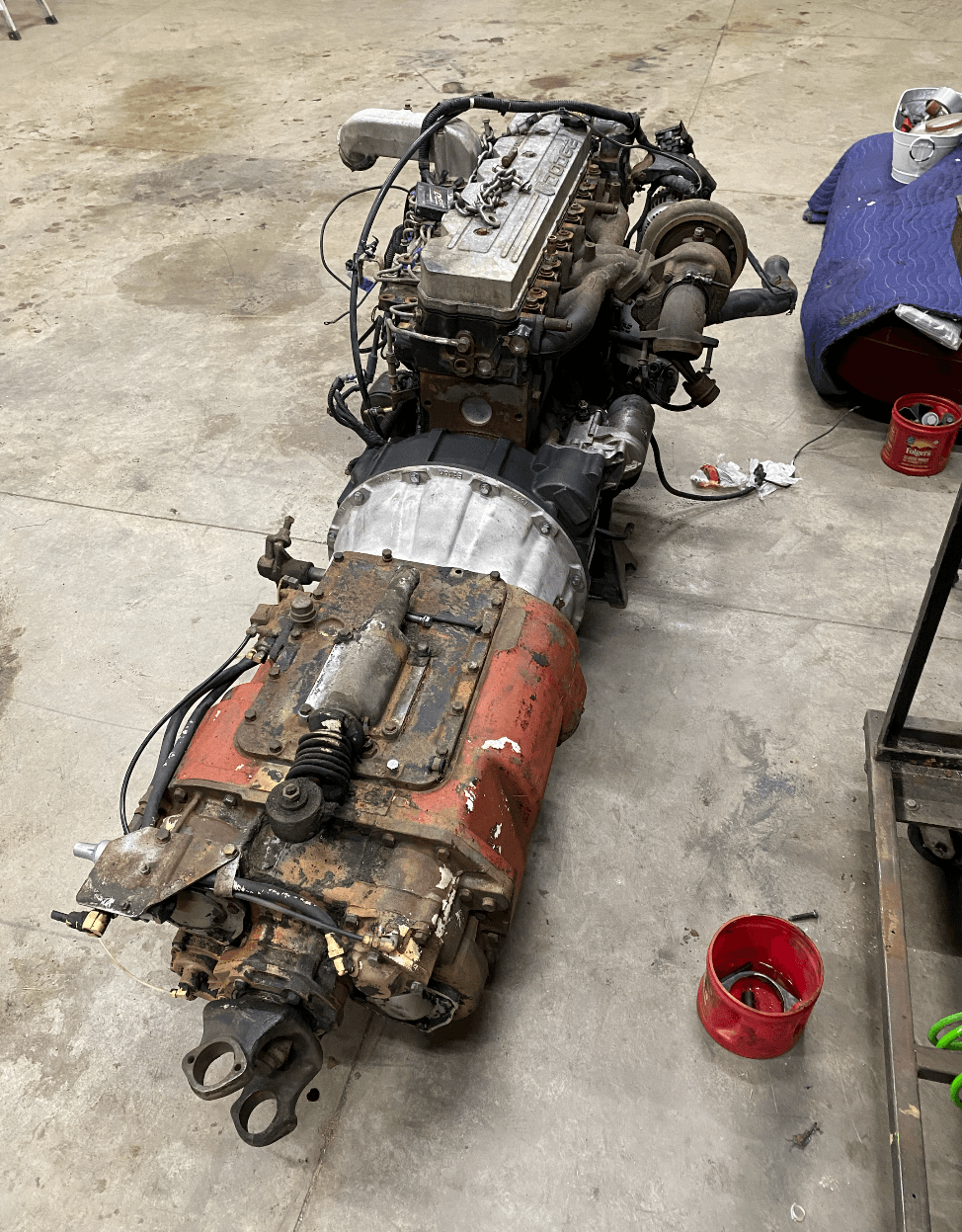

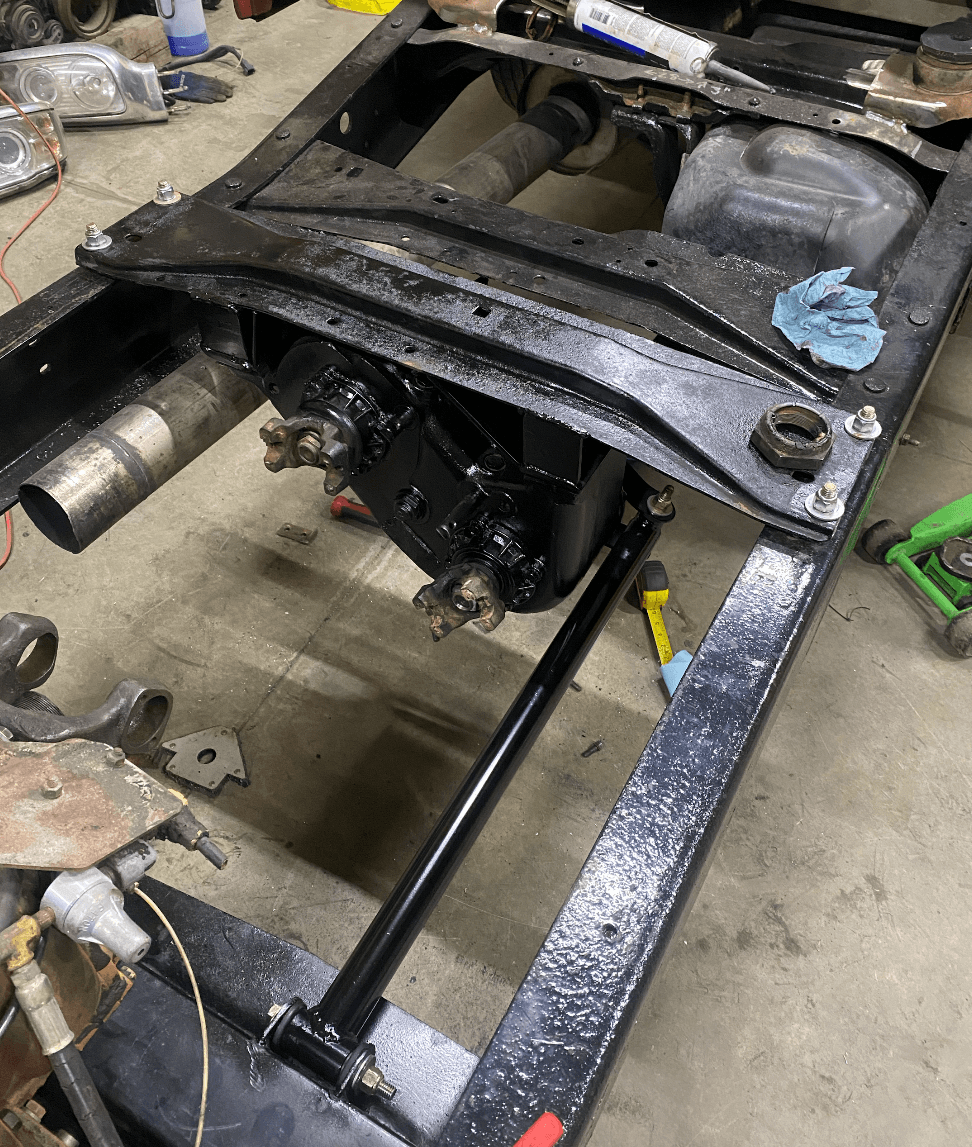

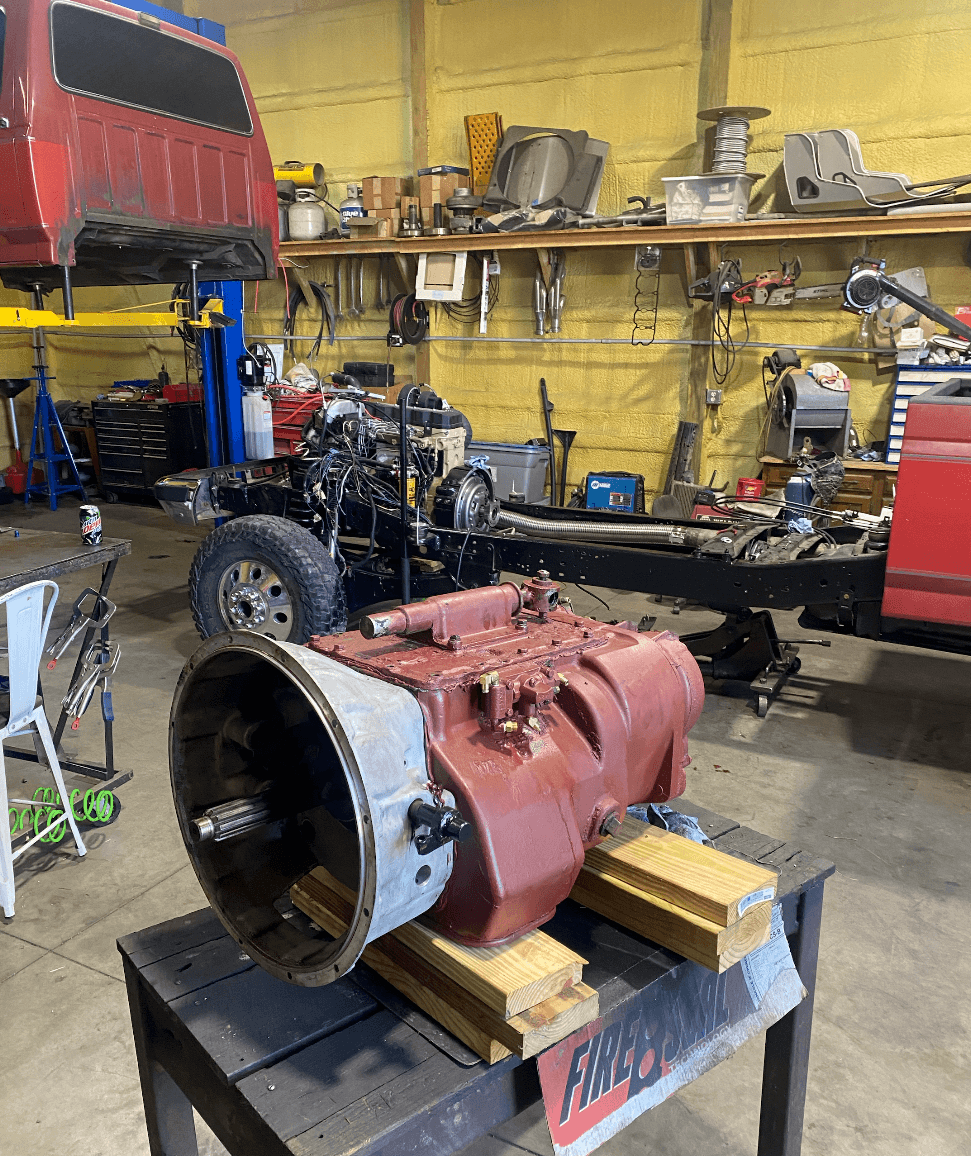

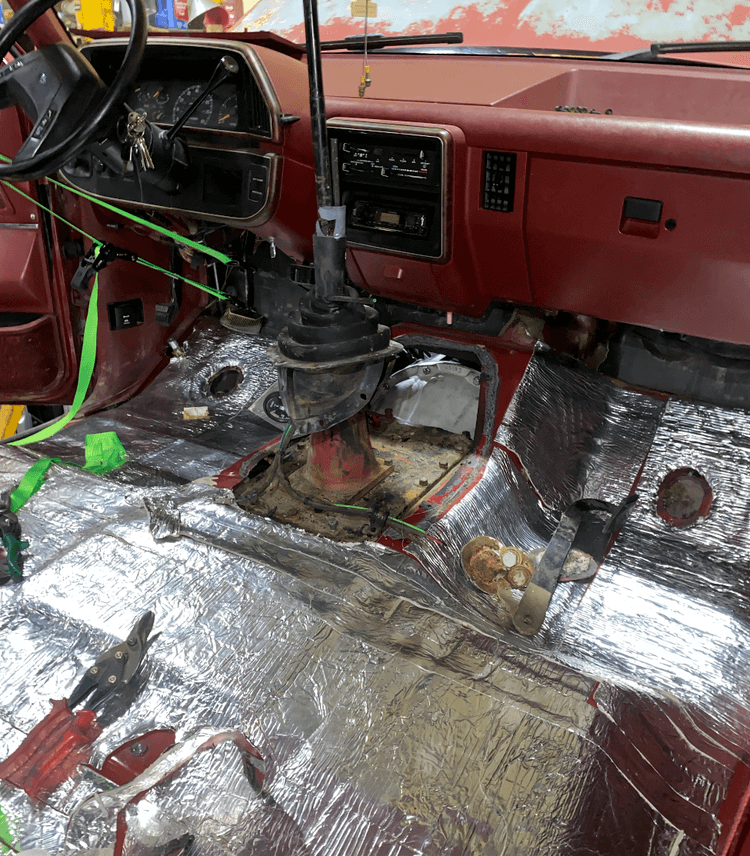

The transmission was even more unique. He chose a 13-speed Eaton Fuller RTO9513, knowing it was a bit of an over-kill, but appreciated its durability and the potential for a wider overdrive range (5:09-6:25). To achieve four-wheel drive, he cleverly incorporated a divorced NP205 transfer case (6:04-6:18). With the engine and drivetrain sorted, he then focused on the exterior and suspension.

I mean it's a little overkill, but why not? I'm building something obscure anyway.

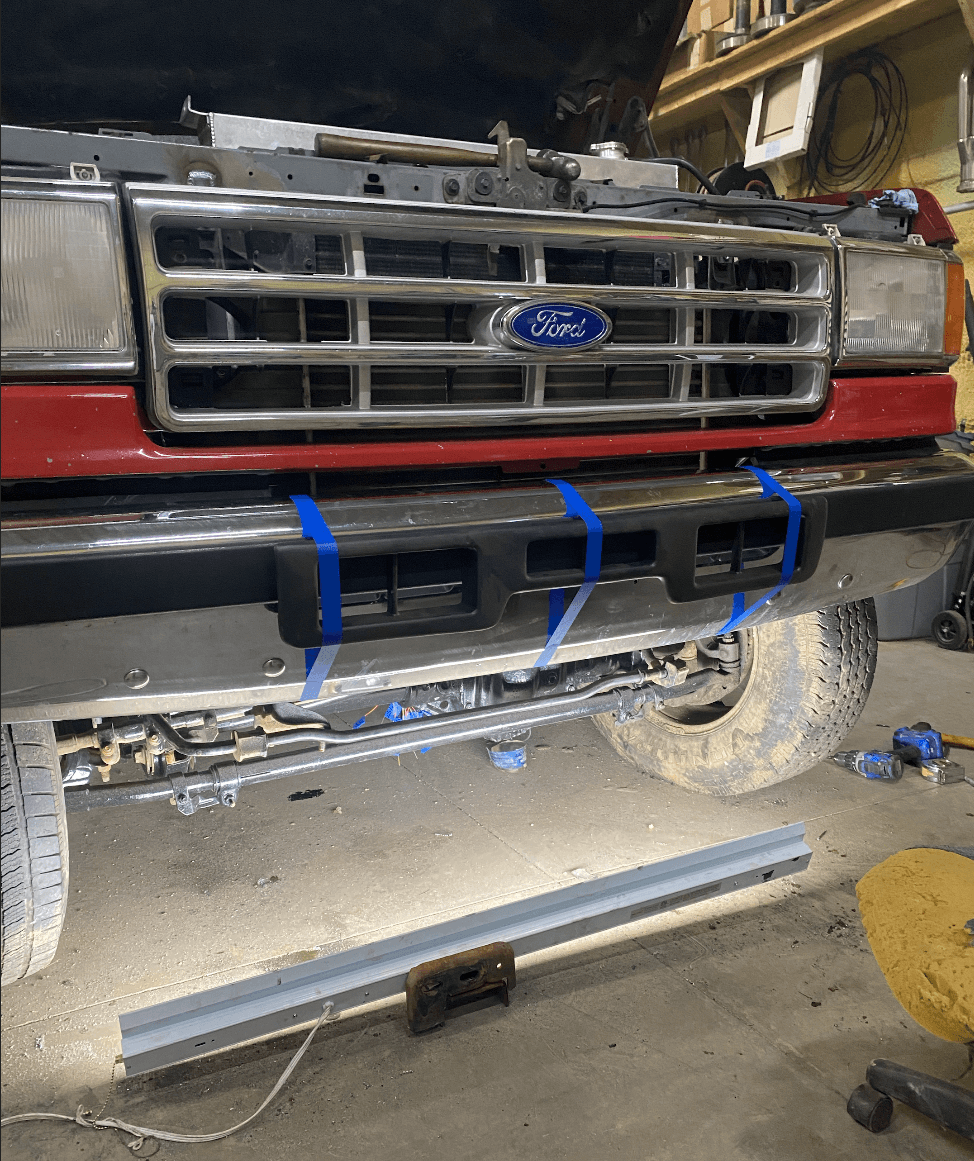

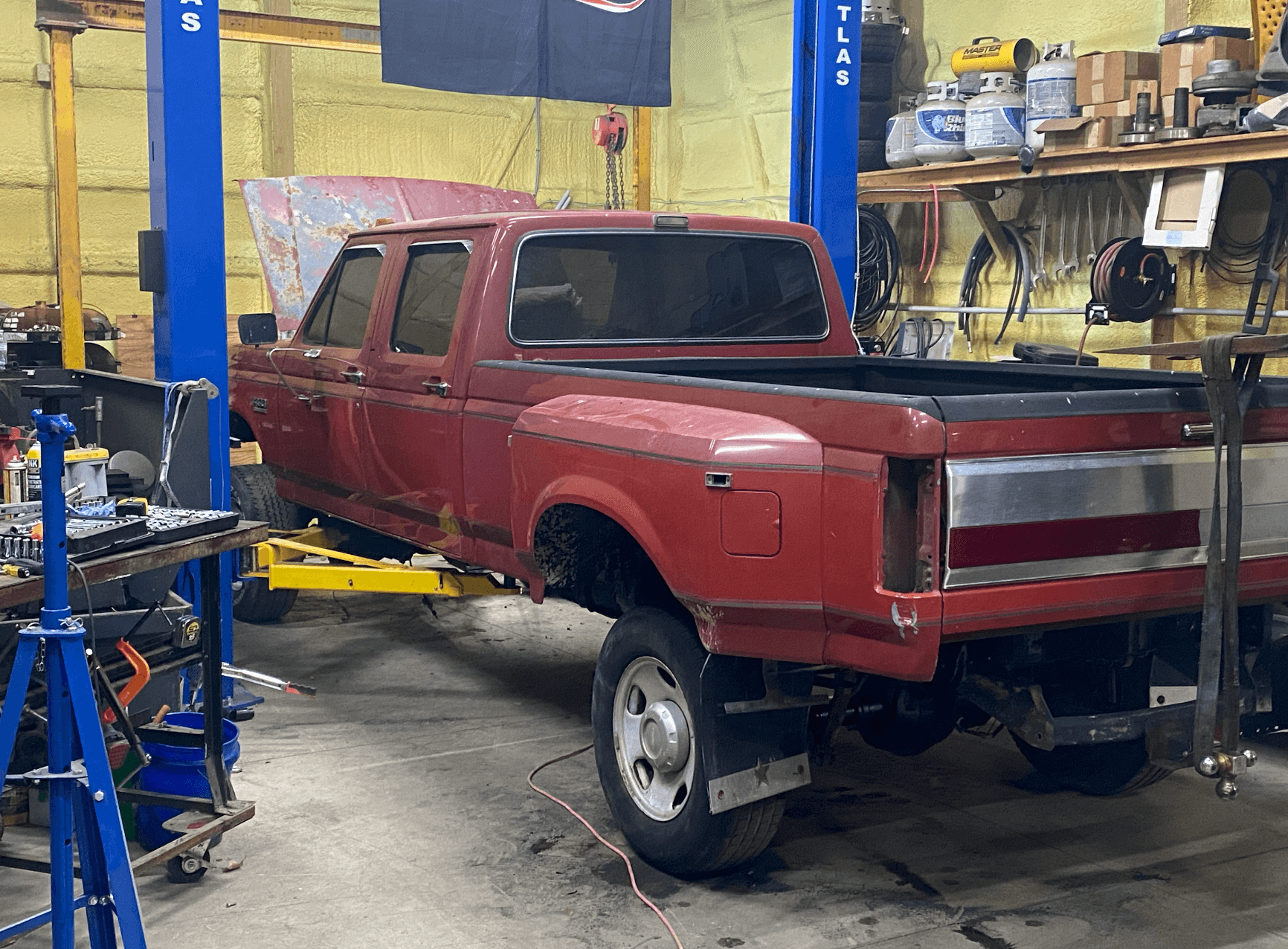

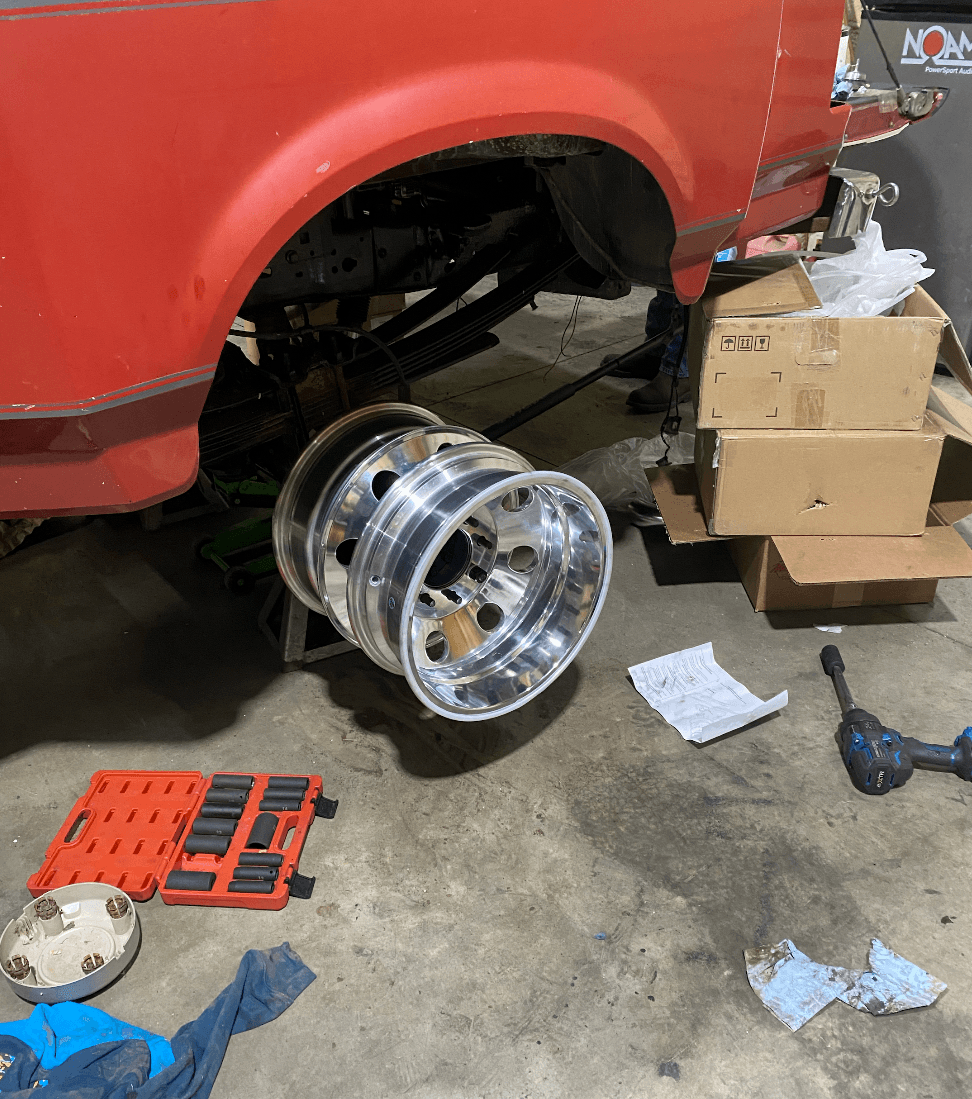

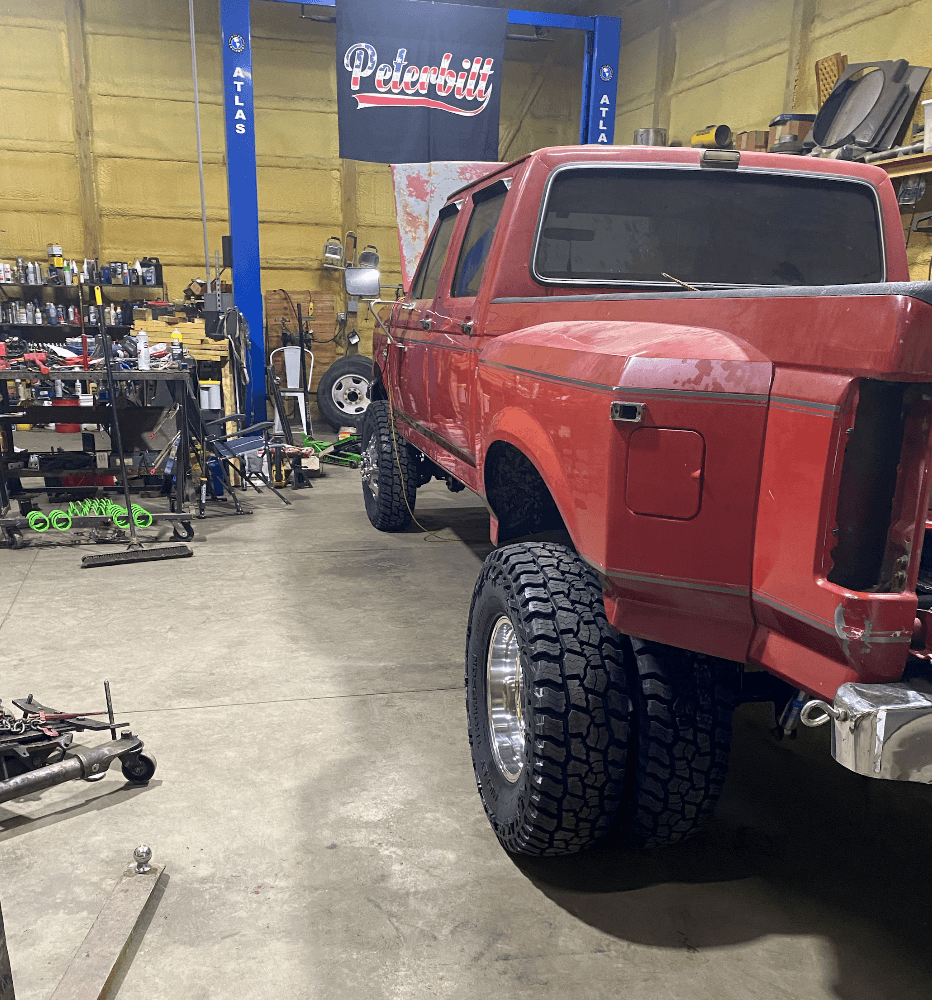

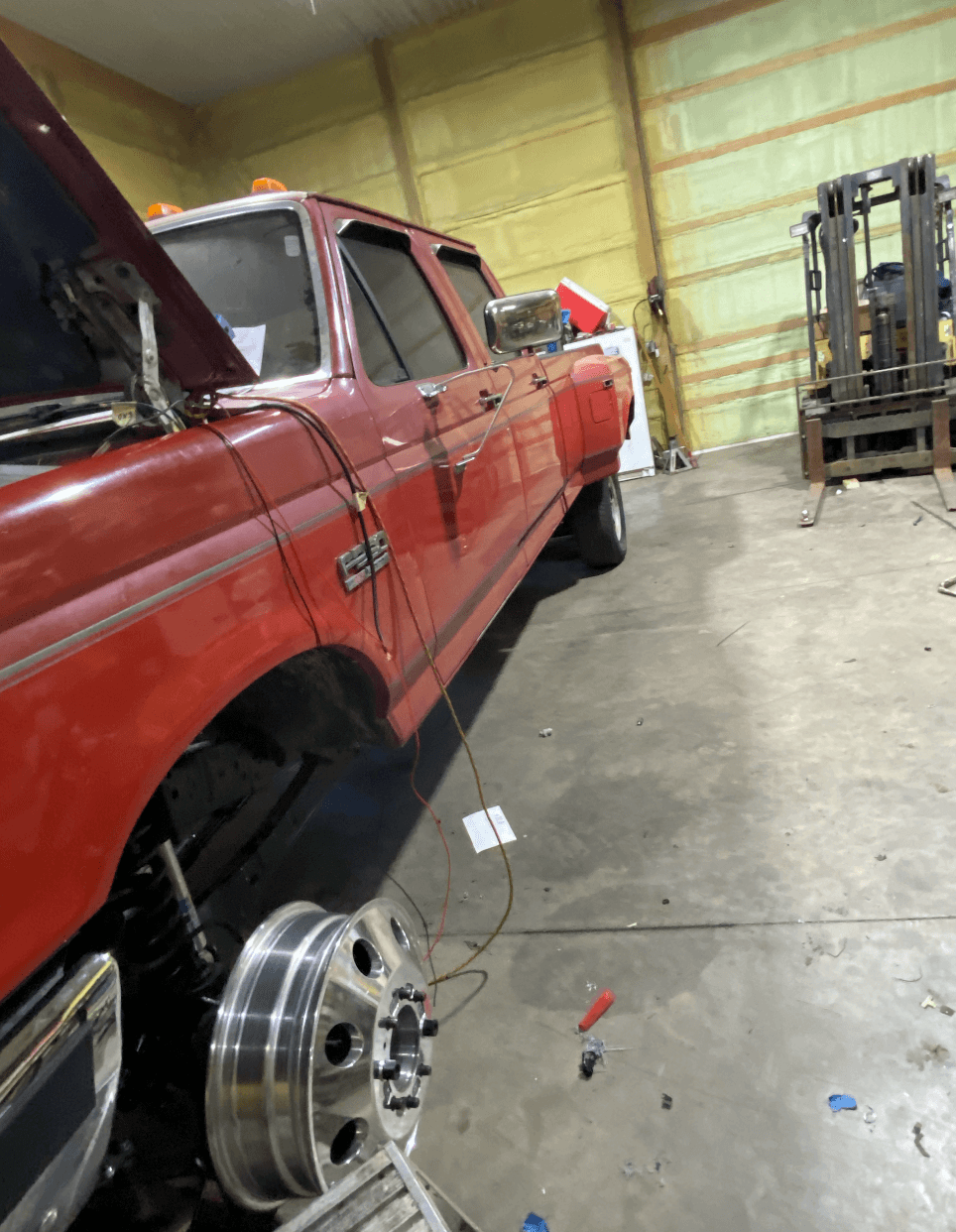

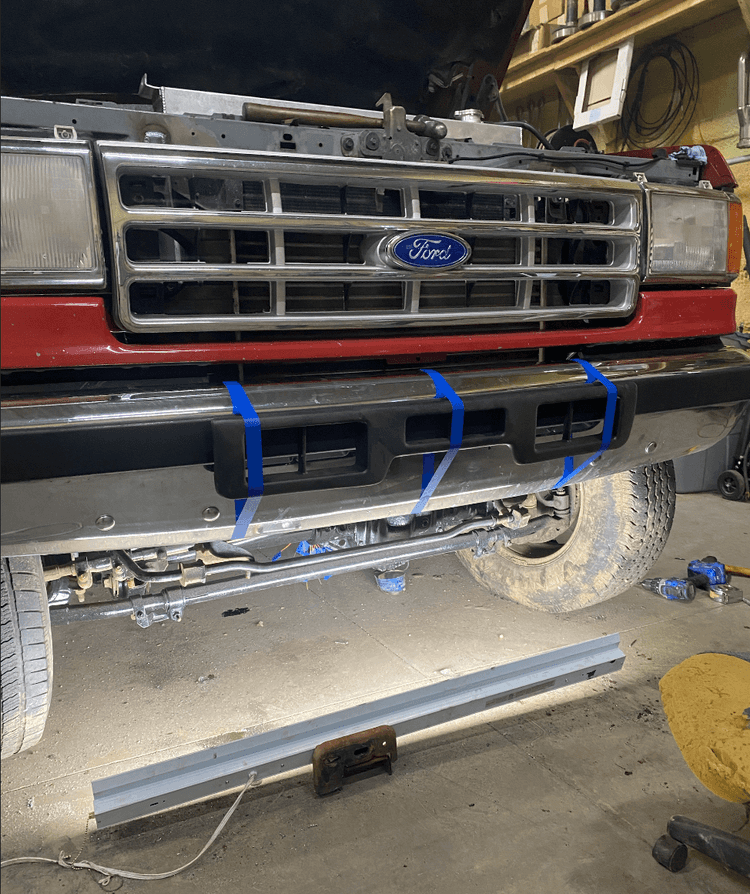

He gave the truck a 3-inch body lift to improve engine access for maintenance (8:59-10:59) and installed a leveling kit with Bilstein shocks for a better ride (10:18-10:59). The dually conversion was a particularly interesting touch, as it required custom bolt pattern adapters to fit the single-wheel donor chassis (10:59-12:53). He topped it all off with 255/85 tires for a look that matched his style (12:54).

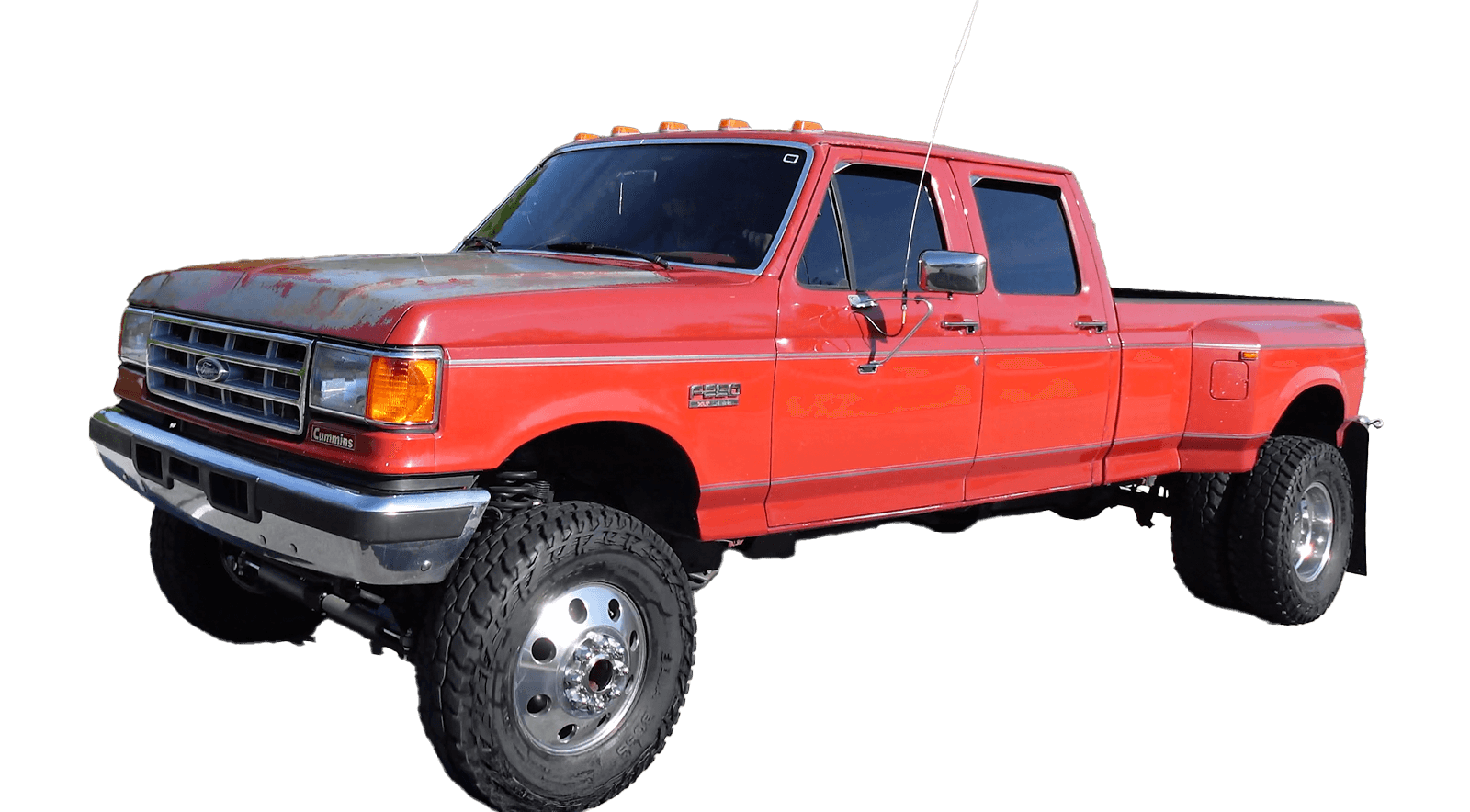

The final result is a truly one-of-a-kind F-350. While he admits that a smaller 10-speed transmission might have been a more practical choice, he stands by his decision to use the robust 13-speed, knowing it can handle even the most demanding loads (15:56-17:10). It's a testament to his passion for building and a reminder that sometimes, the most rewarding projects are the ones that are deeply personal.

Builder Q&A

What was done to the Eaton Fuller RTO-9513?

Custom converted to a "double overdrive" RTOO-9513 RTO-9513 12th gear is 1.00:1 and 13th gear is .87:1 RTOO-9513 11th gear is 1.00:1, 12th gear is .73:1 and 13th gear is .62:1

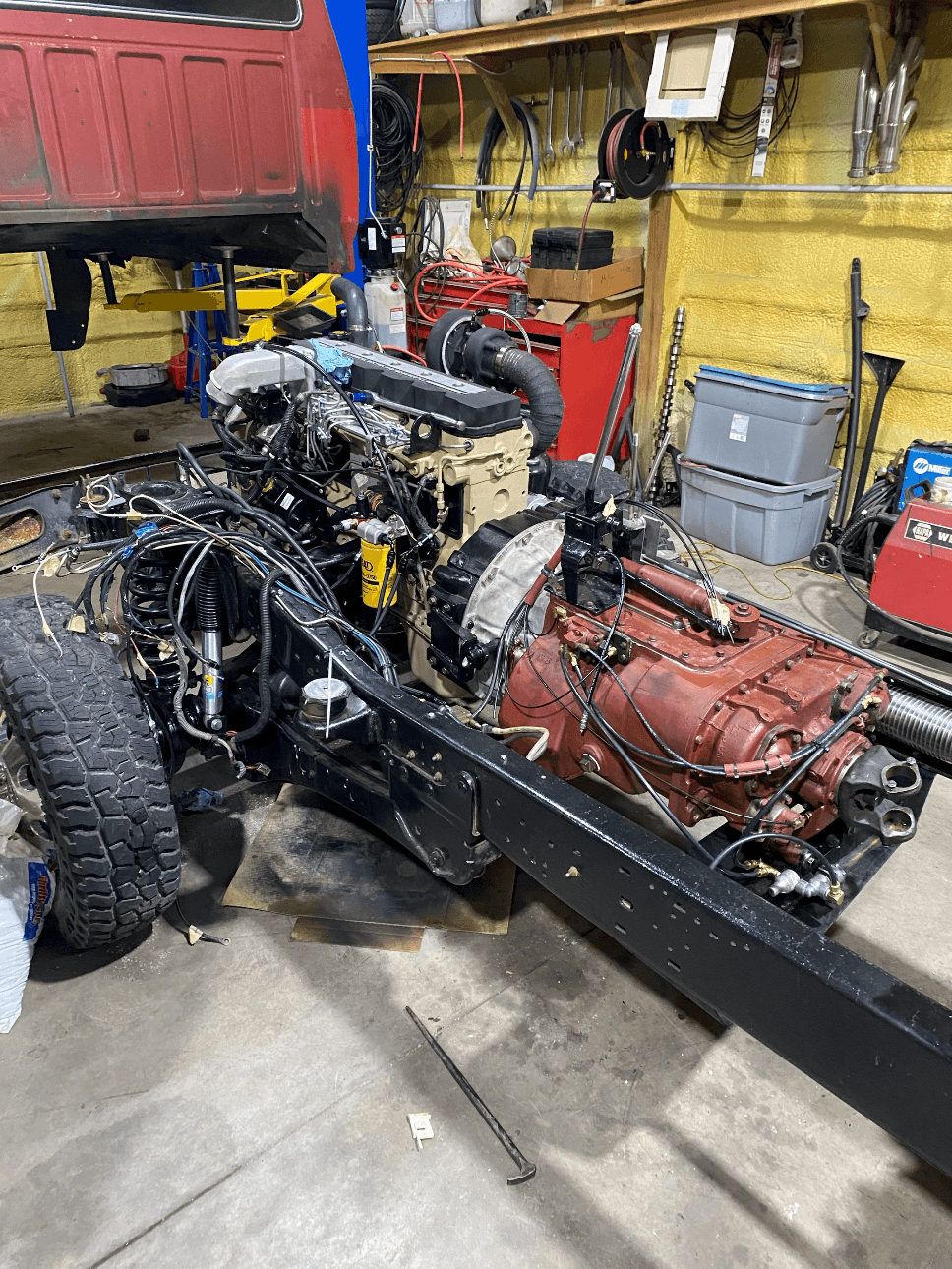

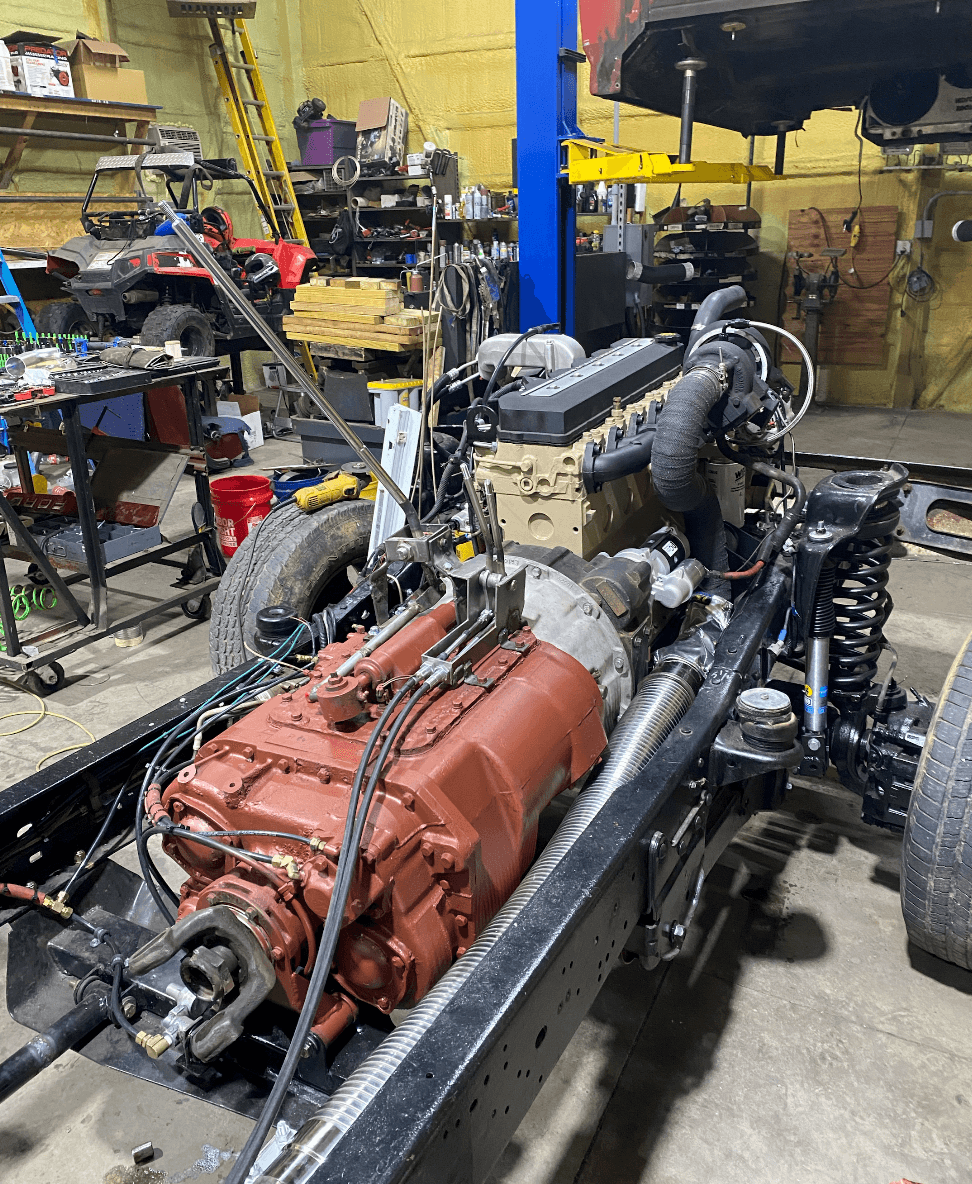

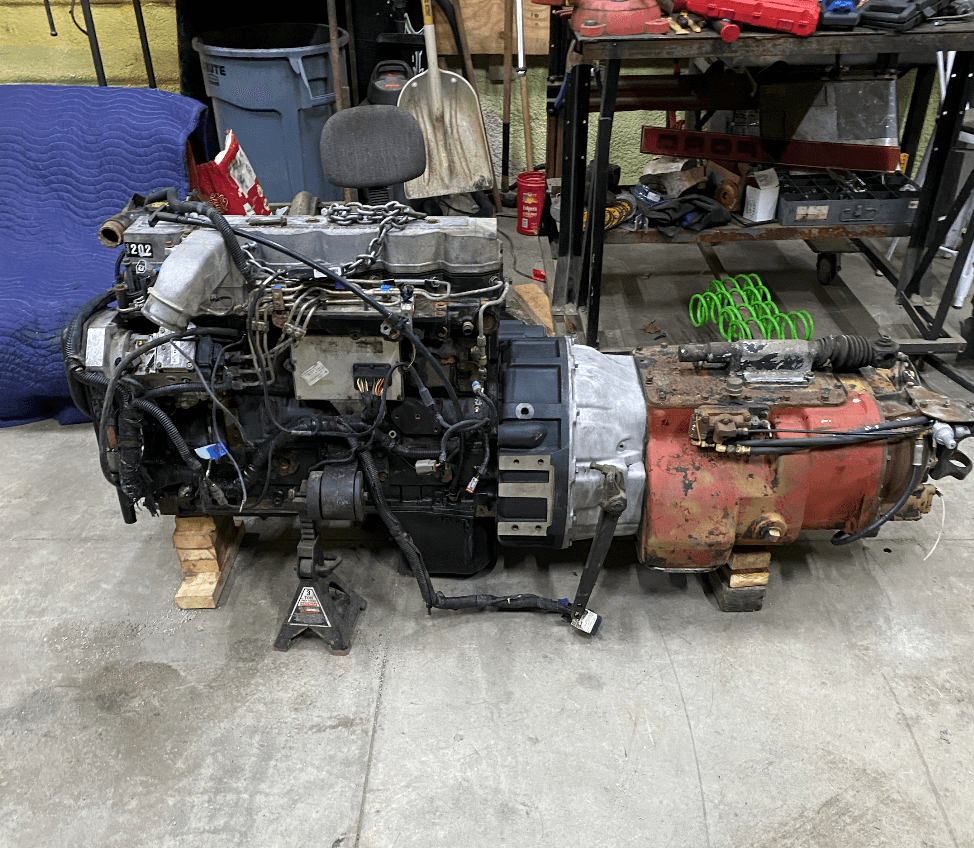

How did you attach the Eaton Fuller to the 24v Cummins?

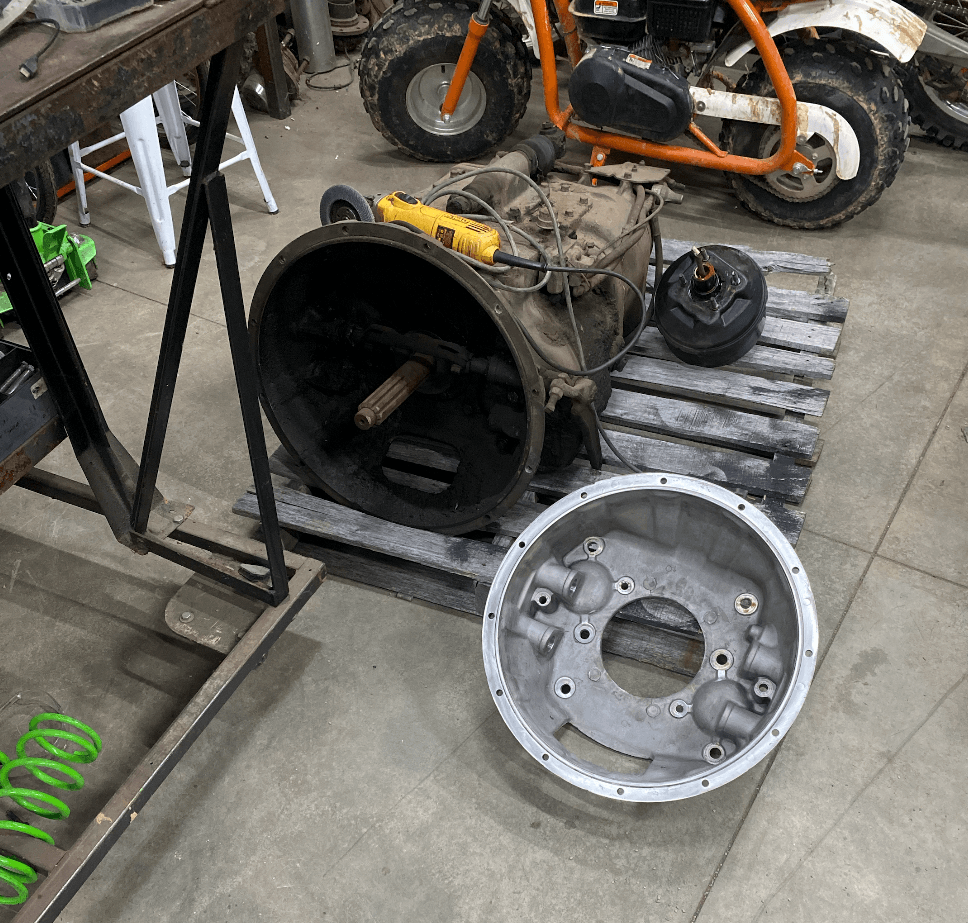

Smallest bell housing for the RTO-9513 is a SAE#2 which forced me to find a SAE#2 flywheel housing for the Cummins. Side note: the RTO610 and RTO-6610 will use an SAE#3 bell housing which would have given more room around the firewall and allowed me to have a starter on the drivers side.

Parts List

Body

1987 Ford F-350 Dually
3-Inch Body Lift
Line-X Bed Liner
visit product site ›
Ford Bed Mat
Heavy Duty Rear Bumper
Original '87 Paint from the Midwest

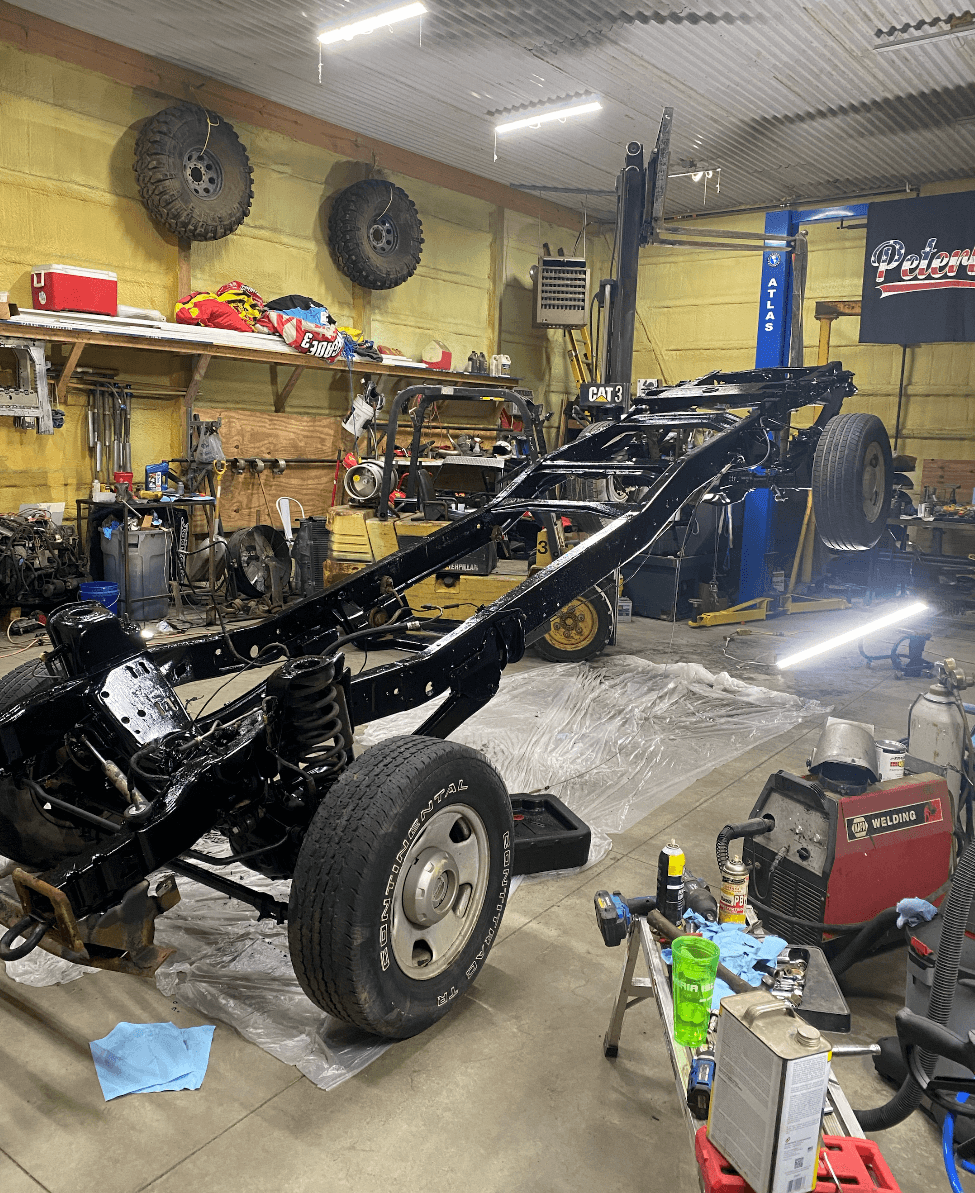

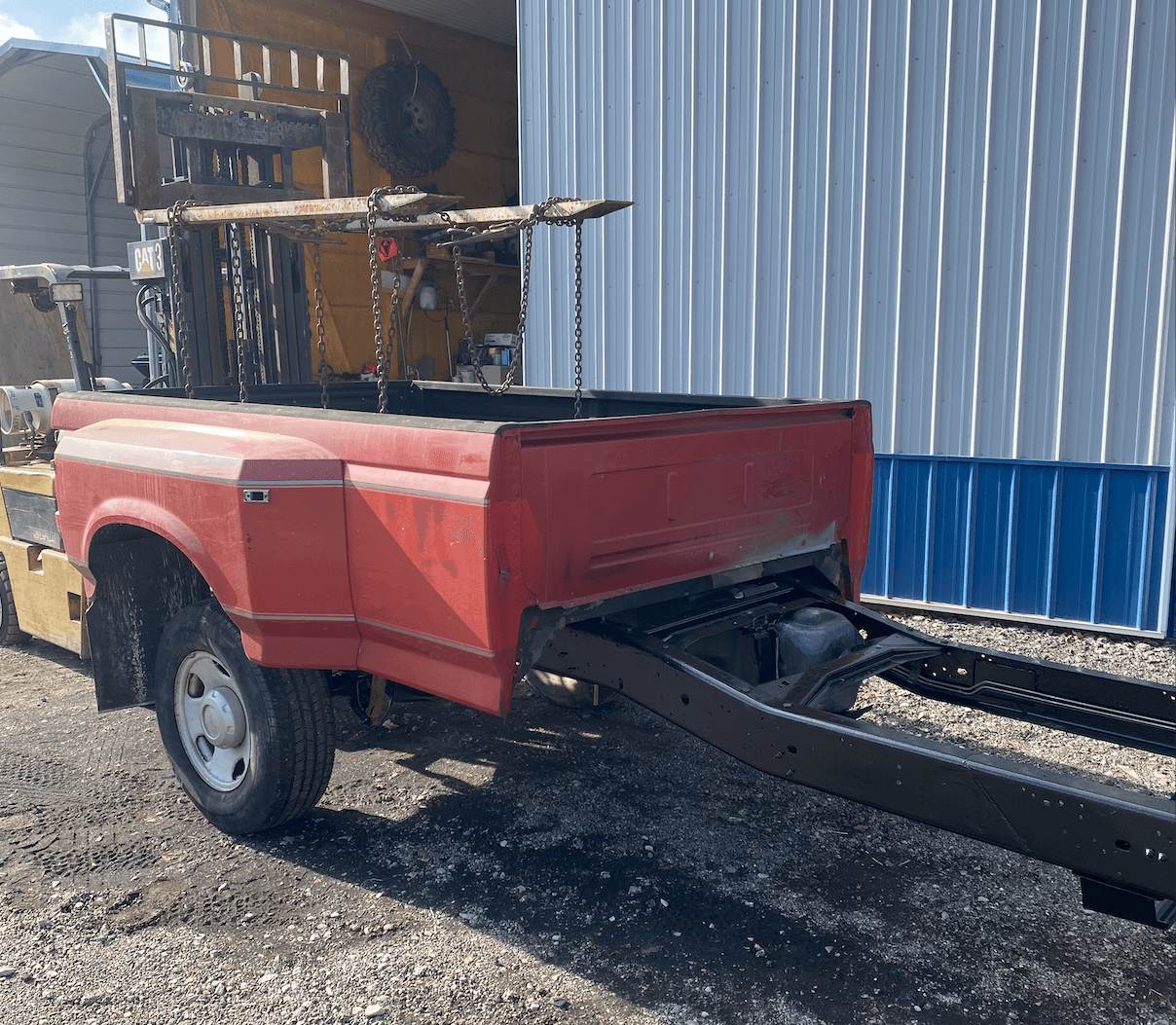

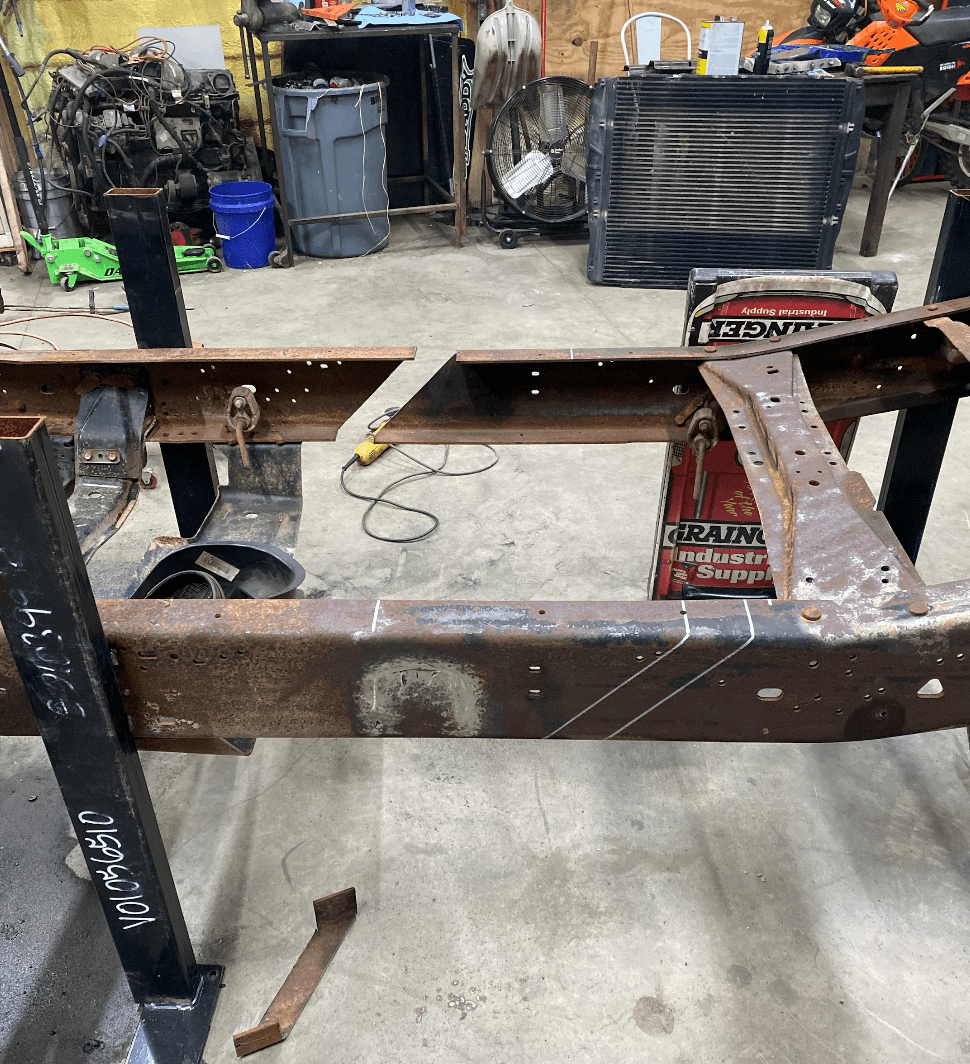

Chassis

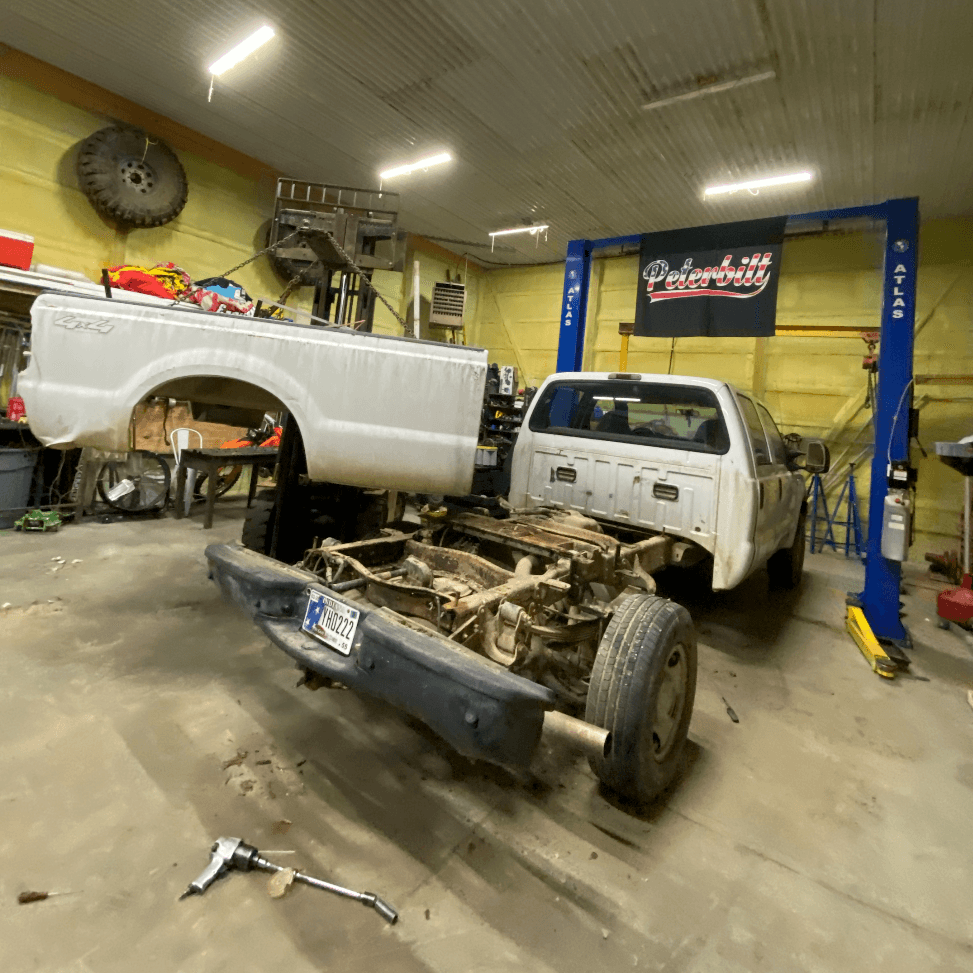

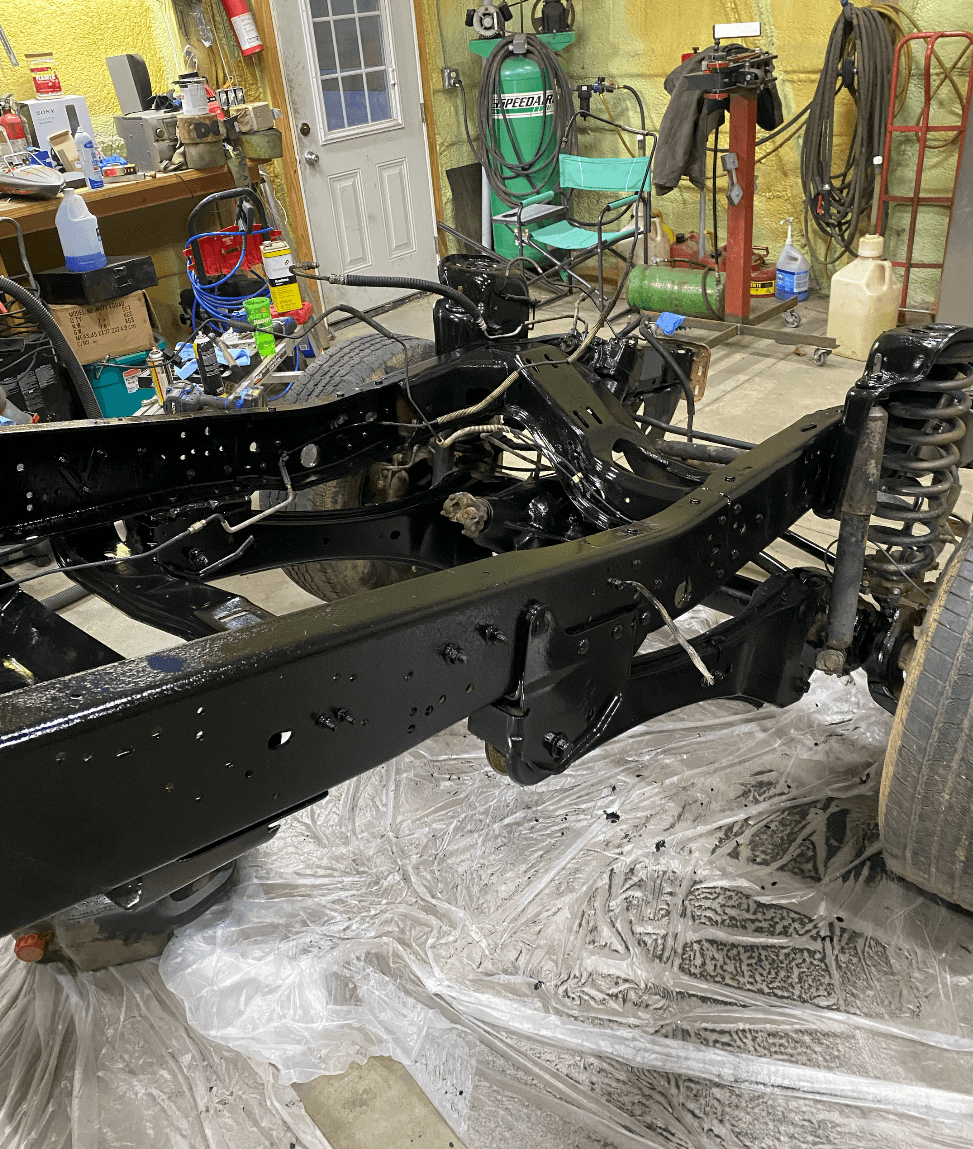

2005 Super Duty F350 single wheel 4x4 Diesel

Engine

2000 24v Cummins
Part No. 235hp 180k Original Miles

Differential

Dana 60 Front Axle
Part No. 3.73 Gears
Sterling 10.5" Rear Axle
Part No. 3.73 Gears with LSD

Boost

Holset Turbo
Part No. HX35

Transmission

Eaton Fuller 13-Speed Transmission
Part No. 1970s era RTO-9513 custom converted to a RTOO-9513

Fuel System

Diesel Injection Pump
Part No. Bosch VP44
visit product site ›
Ford Lift Pump
Part No. 6C3Z-9G282-C
visit product site ›
Aeromotive Bypass Regulator with a 4770/24770 fuel filter base
Part No. 13301
visit product site ›
Caterpillar fuel filter
Part No. 1R-0749
visit product site ›

Powertrain

SAE #2 Bell Housing for RTO-9513
Part No. K1660
visit product site ›
SAE #2 Flywheel Housing for 6BT/4BT Cummins
Part No. 3903282
visit product site ›
Cummins 15.5" Flywheel for a 14" Clutch
Part No. 3921263
visit product site ›
Starter
Part No. 28MT
visit product site ›
Driveshafts
Part No. Custom built by Patterson Driveline & Machine
visit product site ›
94-2002 Dodge Cummins Hydraulic Clutch Master & Slave Cylinder

Suspension

2005 Ford F350 Coilovers (OEM)
Bilstein Monotube Shocks (Front & Rear)
Part No. 24-186018 / 24-062466
visit product site ›
Leveling Kit
Dual Steering Stabilizers

Accessories

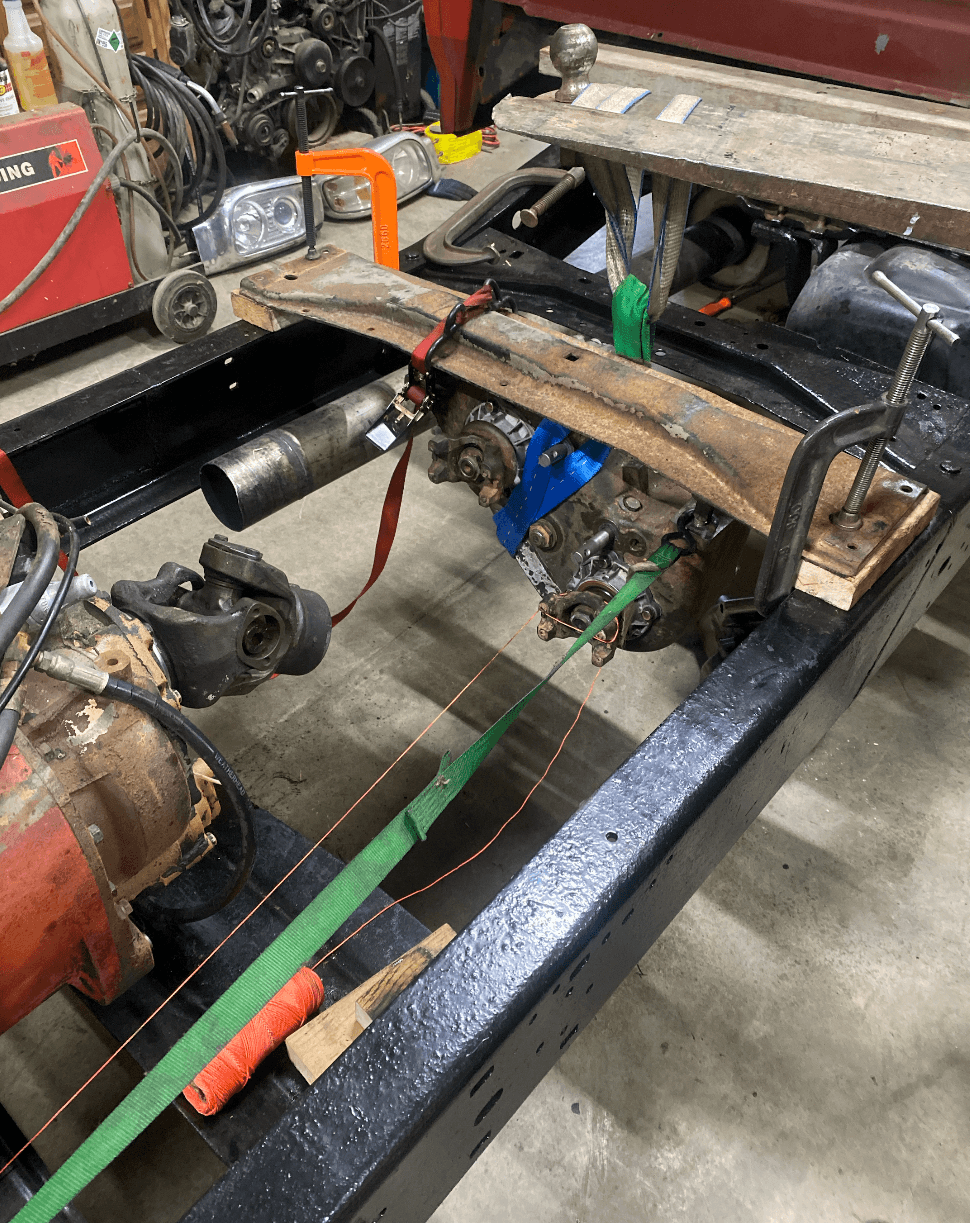

Divorced 4WD Transfer Case from Early 70's Ford High Boy
Part No. NP205 upgraded to all 1410 input and output yokes

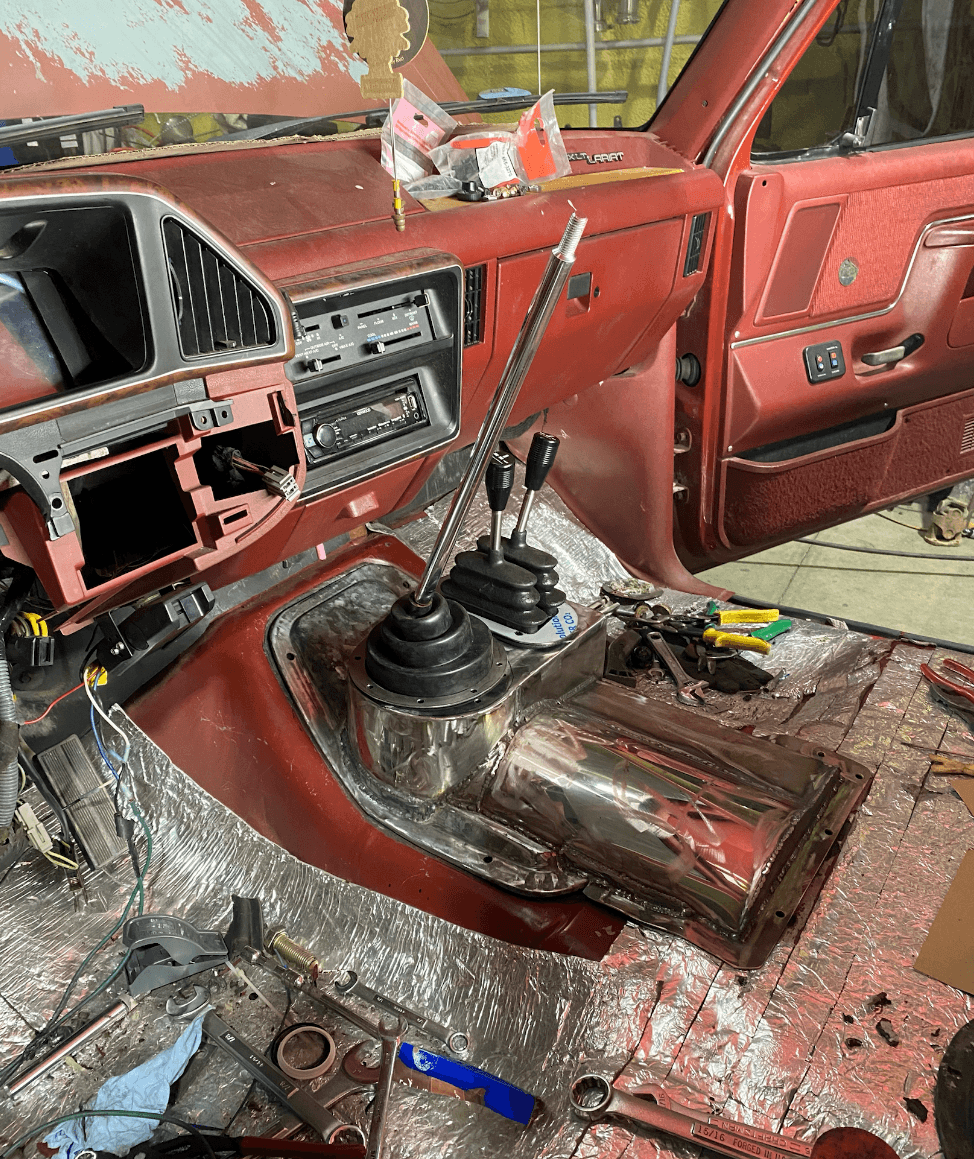

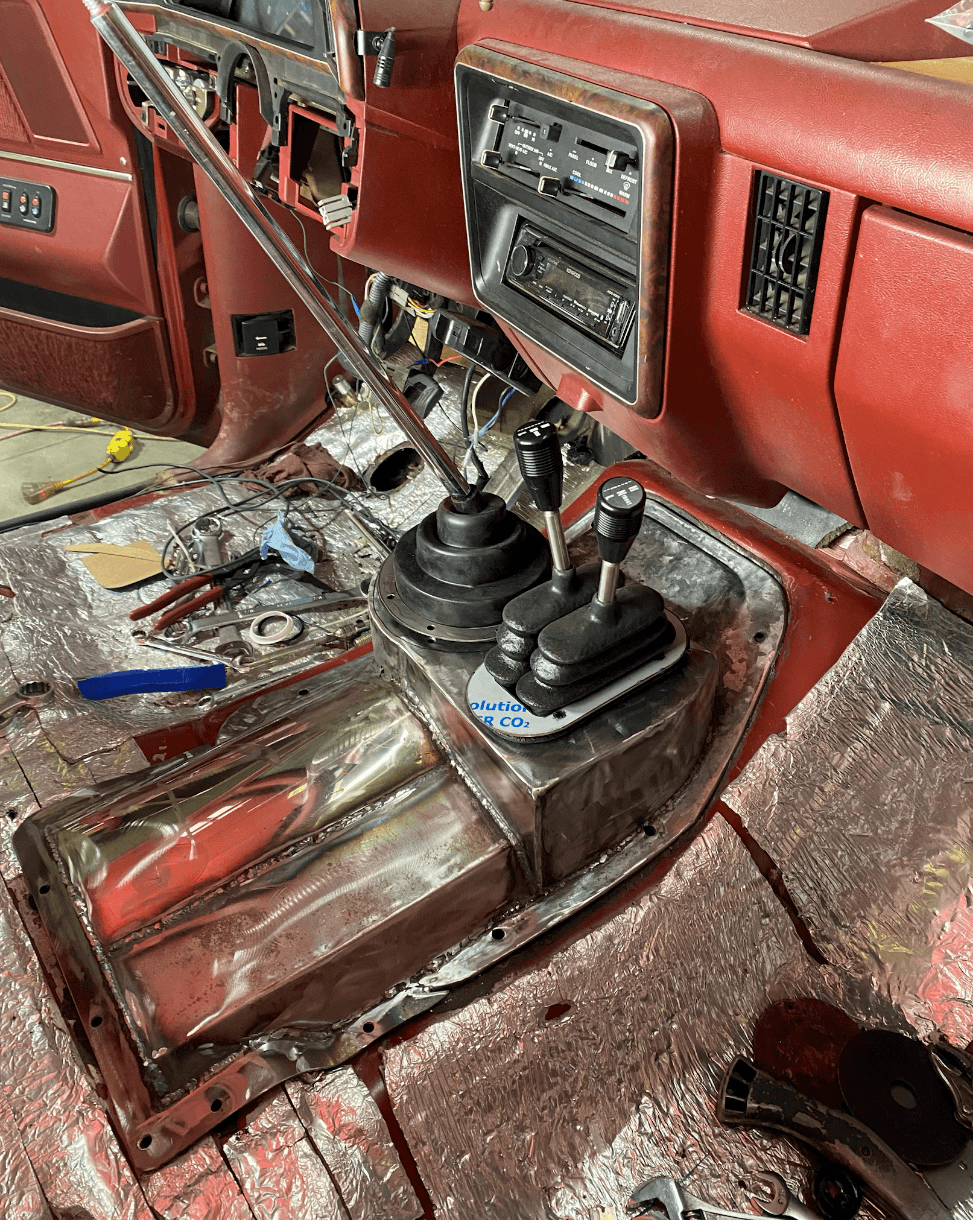

NP205 Ford Remote Cable Twin Stick Shifters
Part No. JB Custom Manufacturing
visit product site ›
NP205 Rebuild Kit
Part No. BK205GDM
visit product site ›

Electrical

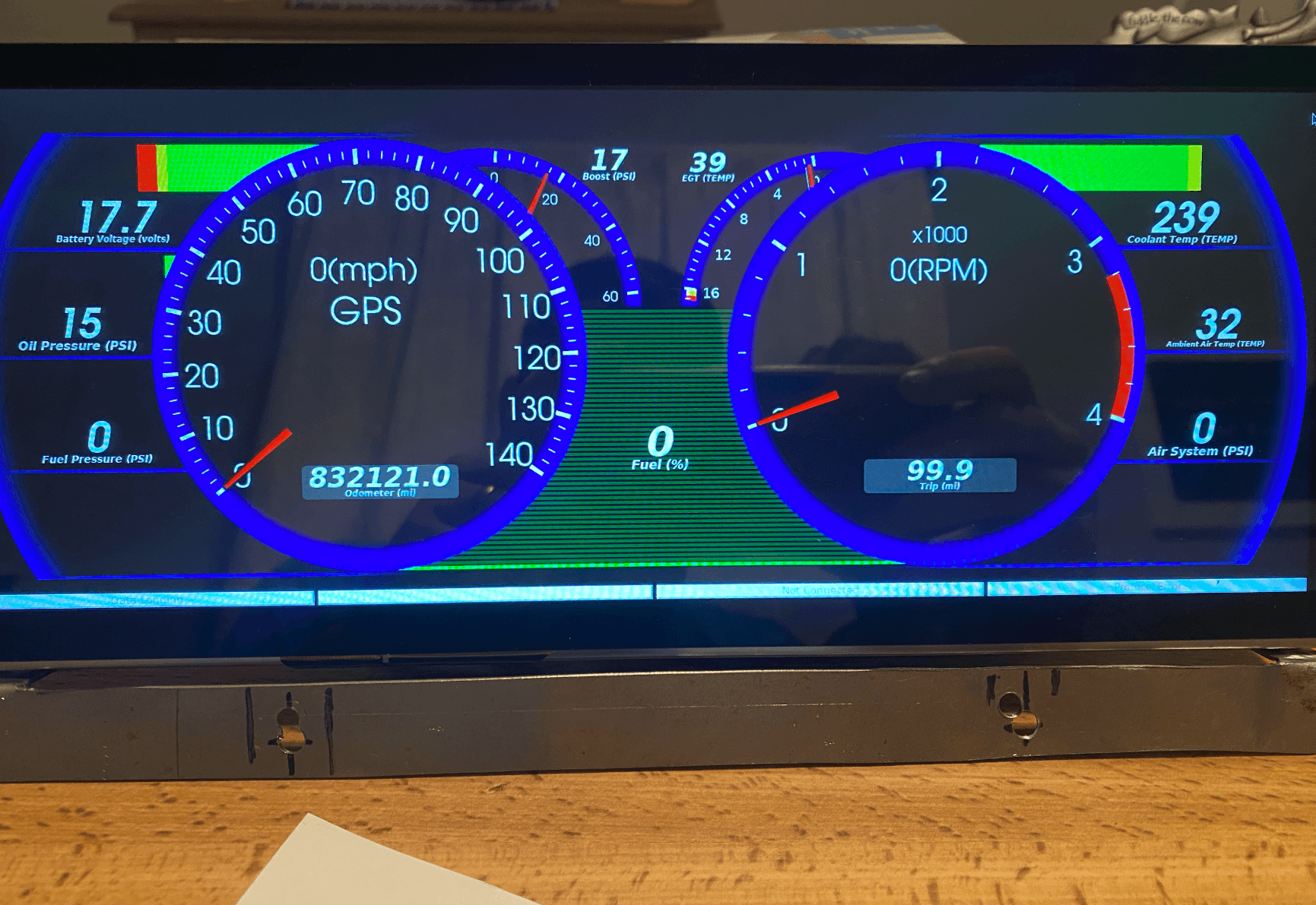

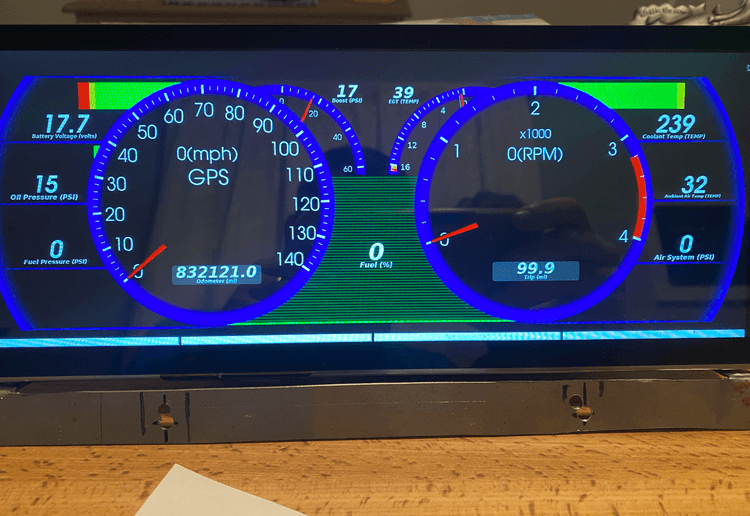

One Gauge Digital Dash - custom UI designed myself
Part No. PiDash Kit
visit product site ›
Edge EZ Programmer
Part No. 30201
visit product site ›

Exhaust

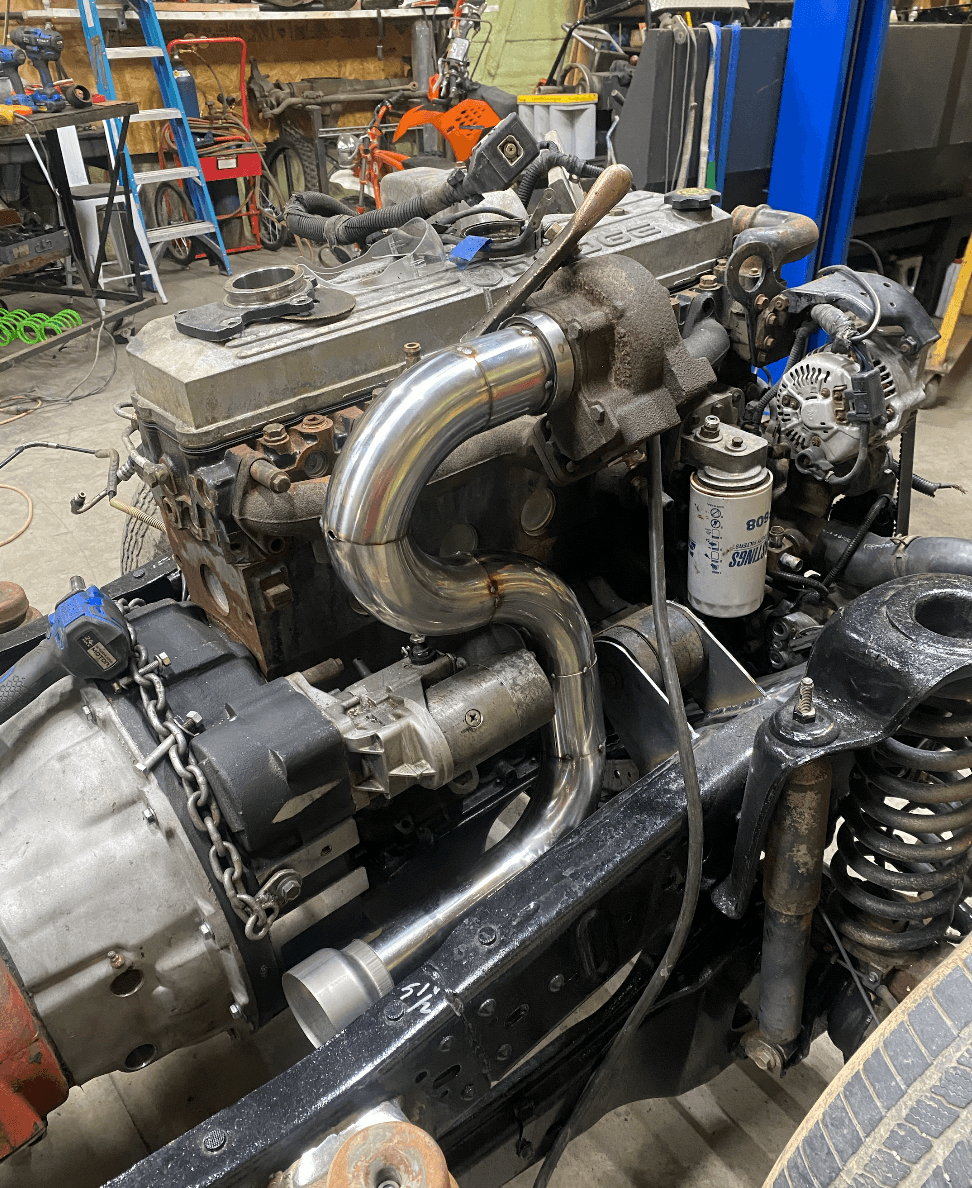

Custom Exhaust System
Part No. Built by Troy's Father

Rims & tires

Arrowcraft Products Dual Wheel Adapter Kit
visit product site ›
Mickey Thompson Baja Boss A/T Tires
Part No. LT255/85 R17
visit product site ›

Brakes

2005 F350 4-Wheel Disc Brakes (OEM)
2005 Ford Hydraboost Master Cylinder (OEM)
